Thread Type: BSPP male x BSPP swivel female run x BSPP male branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

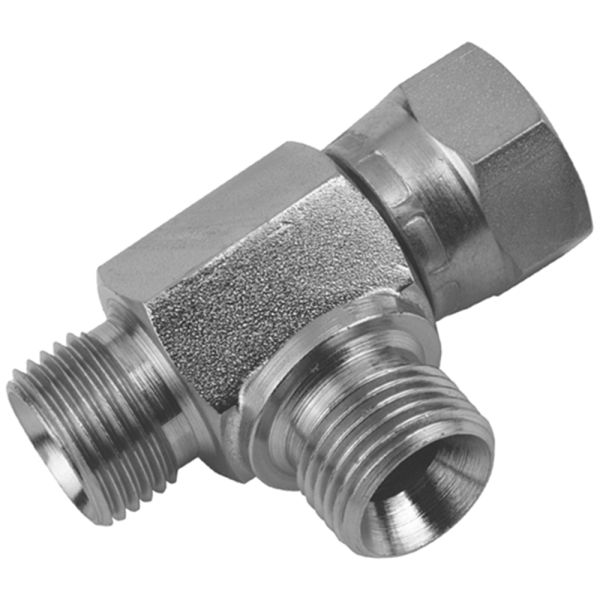

This 90° tee fitting features a BSPP male x swivel female run and a BSPP male branch, each with a 60° cone seating for a secure, leak-resistant connection. The swivel female run allows for easy hose alignment during installation, reducing twisting and stress on the assembly. Manufactured from robust steel to BS EN 10277 standards, this adaptor offers precision, durability, and reliability for high-performance hydraulic systems.
Key Features & Benefits
Swivel Female Run: Simplifies installation and prevents hose twisting
Dual Male Connections: Allows versatile integration into hydraulic layouts
60° Cone Seal: Reliable leak prevention through metal-to-metal contact
Standards Compliant: Meets BS EN 10277 dimensional and material requirements
Proven Quality: Manufactured under ISO 9001-certified processes
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

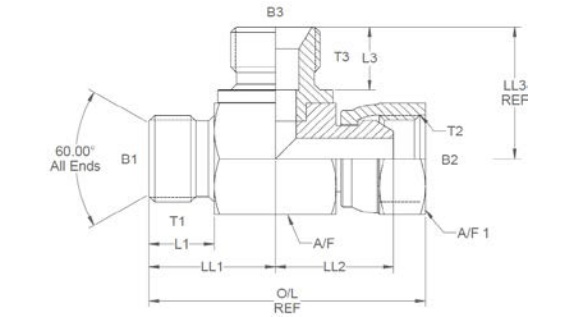

T1, T2 & T3 (")
B1 & B3 (")
B2 (")
L1 & L3 (")
LL1 (")
LL2 (")
LL3 (")
A/F & A/F1 (mm)
380121
ZMFMB02
1/8
0.137
0.125
0.44
0.77
0.687
0.815
14
380122
ZMFMB04
1/4
0.185
0.172
0.45
0.88
0.84
0.934
19
380123
ZMFMB06
3/8
0.312
0.271
0.52
1
0.992
1.078
22
380124
ZMFMB08
1/2
0.437
0.375
0.6
1.162
1.09
1.256
27
380125
ZMFMB10
5/8
0.562
0.464
0.7
1.387
1.187
1.425
30
380126
ZMFMB12
3/4
0.6
0.6
0.75
1.48
1.23
1.53
32
380127
ZMFMB16
1
0.843
0.797
0.8
1.68
1.428
1.767
41
380128
ZMFMB20
1 1/4
1.125
1.014
0.8
1.925
1.735
1.969
50
