Thread Type: Reducing BSPP male x BSPP swivel female run x BSPP male branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

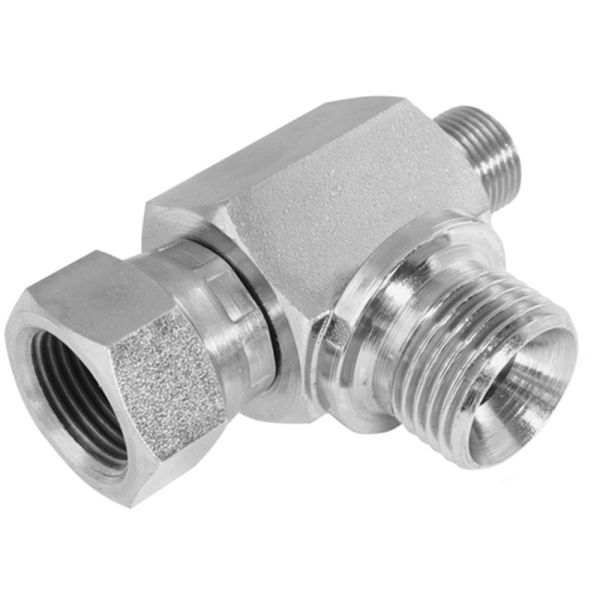

This reducing run 90° tee features a BSPP male x swivel female run with a BSPP male branch, designed with a 60° cone seating for dependable metal-to-metal sealing. The reducing male run allows connection between different BSPP sizes, while the swivel female end ensures easier installation and precise orientation without twisting hoses or pipes. Built from durable steel to BS EN 10277 standards, this tee is suitable for high-pressure hydraulic applications where space efficiency and reliable sealing are essential.
Key Features & Benefits
Reducing Male Run: Connects different BSPP sizes in-line
Swivel Female End: Allows for quick, hassle-free installation
60° Cone Seal: Ensures a strong, leak-resistant connection
Precision Manufacture: Made to BS EN 10277 standards
Proven Reliability: Produced under ISO 9001 quality control
Downloads
Burnett & Hillman Pressure Guide

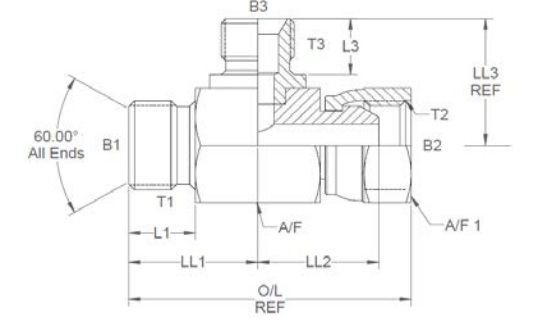

SKU
Product Code
T1 (")
T2 & T3 (")
B1 (")
B2 (")
B3 (")
L1 (")
L3 (")
O/L (")
LL1 (")
LL2 (")
LL3 (")
A/F (mm)
380145
02036
3/8
1/2
0.312
0.375
0.39
0.52
0.6
2.45
1.082
1.09
1.256
27
