Thread Type: BSPP male x BSPP swivel female run x reducing BSPP male branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This reducing branch 90° tee features a BSPP male x swivel female run with a smaller BSPP male branch, all incorporating a 60° cone seating for reliable sealing. The swivel female run allows easy installation and hose alignment without twisting, while the reducing male branch facilitates connection between differing port sizes. Made from durable steel to BS EN 10277 standards, it delivers strength, precision, and consistent performance for hydraulic applications.
Reducing Male Branch: Connects different BSPP sizes in one fitting
60° Cone Seal: Secure metal-to-metal sealing to minimise leaks
Robust Steel Build: Designed to handle high-pressure use
Standards Compliant: Meets BS EN 10277 dimensional accuracy
Trusted Quality: Produced under ISO 9001-certified processes
Downloads
Burnett & Hillman Pressure Guide

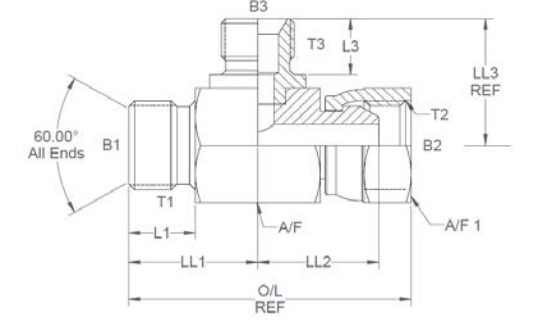

SKU
Product Code
T1 & T2 (")
Reducing Branch T3 (")
B1 (")
B2 (")
B3 (")
L1 (")
L3 (")
O/L (")
LL1 (")
LL2 (")
LL3 (")
A/F & A/F1 (mm)
380137
02035
3/8
1/4
0.312
0.271
0.185
0.52
0.45
2.245
1
0.992
0.993
22
380138
02032
1/2
1/4
0.437
0.375
0.185
0.6
0.45
2.53
1.162
1.09
1.091
27
380139
02031
1/2
3/8
0.437
0.375
0.296
0.6
0.52
2.53
1.162
1.09
1.176
27
380140
02022
3/4
1/4
0.6
0.6
0.185
0.75
0.45
3.1
1.48
1.23
1.189
32
380141
02039
3/4
3/8
0.6
0.6
0.296
0.75
0.52
3.1
1.48
1.23
1.275
32
380142
02037
3/4
1/2
0.6
0.6
0.39
0.75
0.6
3.1
1.48
1.23
1.355
32
380143
02023
1
1/4
0.843
0.797
0.185
0.8
0.45
3.56
1.68
1.428
1.367
41
380144
02018
1
3/4
0.843
0.797
0.562
0.8
0.75
3.56
1.68
1.428
1.707
41
