Thread Type: BSPP male x BSPP male reducing run x BSPP swivel female branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

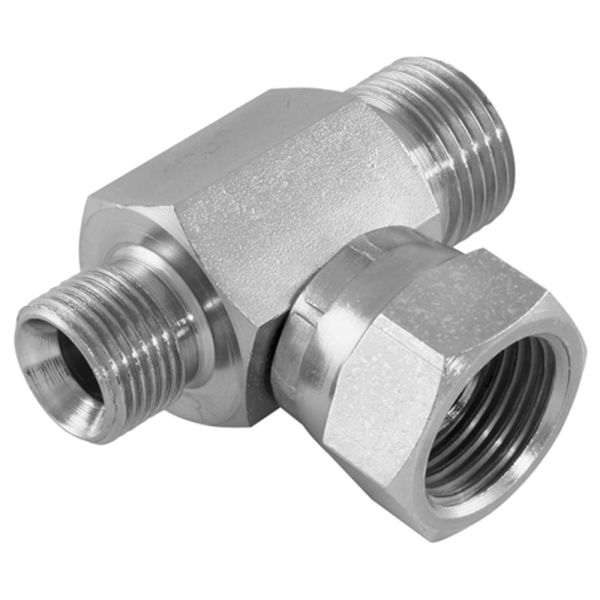

This reducing 90° tee is designed with a BSPP male x male reducing run and a BSPP swivel female branch, all featuring 60° cone seating for dependable, leak-free connections. The reducing run accommodates different BSPP thread sizes within the same hydraulic layout, while the swivel female branch allows easy installation and alignment without hose twisting. Built from high-grade steel to BS EN 10277 standards, it offers exceptional durability and precision for demanding hydraulic system
Key Features & Benefits
Reducing Run: Connects different BSPP sizes along the main flow path
Swivel Female Branch: Enables quick and accurate alignment during fitting
60° Cone Seating: Provides secure metal-to-metal sealing for leak prevention
Strong Steel Build: Resistant to high pressures and mechanical stress
BS EN 10277 Compliance: Ensures dimensional accuracy and material quality
ISO 9001 Certified: Consistent, high-quality manufacturing processes
Downloads
Burnett & Hillman Pressure Guide
SKU
Proxuct Code

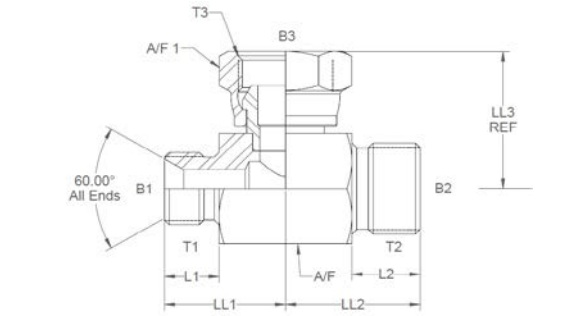

Male Thread T1 (")
Male Thread T2 (")
Female Branch T3 (")
B1 (")
B2 (")
B3 (")
L1 (")
L2 (")
LL1 (")
LL3 (")
A/F (mm)
A/F1 (mm)
380176
01998
3/8
1/2
1/2
0.312
0.437
0.375
0.52
0.6
1.082
1.165
1.38
27
380177
02014
1/4
1/2
1/2
0.185
0.437
0.375
0.45
0.6
1.015
1.165
1.38
27
380178
01999
1/2
3/4
3/4
0.437
0.625
0.562
0.6
0.75
1.33
1.48
1.57
32
