Thread Type: BSPP male x BSPP male (run) x BSPP swivel female (branch)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

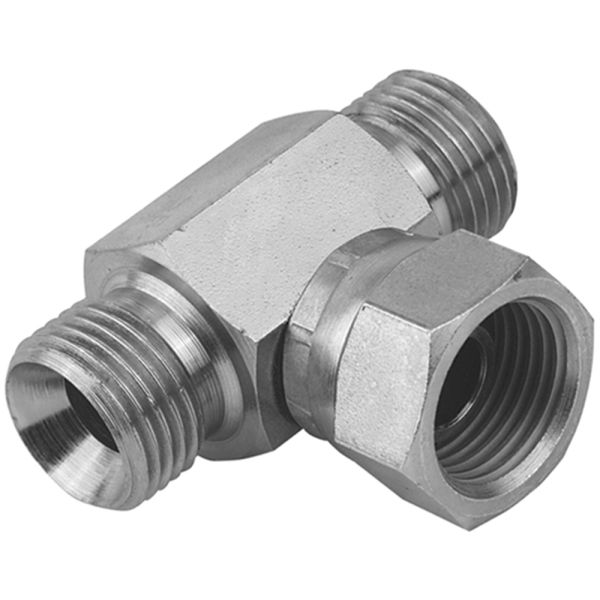

This 90° tee combines a BSPP male x male run with a swivel female branch, all using 60° cone seating for a strong, metal-to-metal seal. The swivel branch allows quick and precise hose alignment without twisting, making installation simpler in restricted spaces. Built from high-quality steel to BS EN 10277 standards, it offers excellent durability, reliability, and performance in high-pressure hydraulic systems.
Key Features & Benefits
Dual Male Run with Swivel Female Branch: Offers versatile connection options for varied hydraulic layouts
60° Cone Seating: Provides robust sealing and leak resistance
Swivel Branch: Enables easier hose positioning and alignment
High-Strength Steel Construction: Designed for long service life in demanding environments
BS EN 10277 Compliance: Meets strict manufacturing standards
ISO 9001 Certified: Produced under rigorous quality control
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

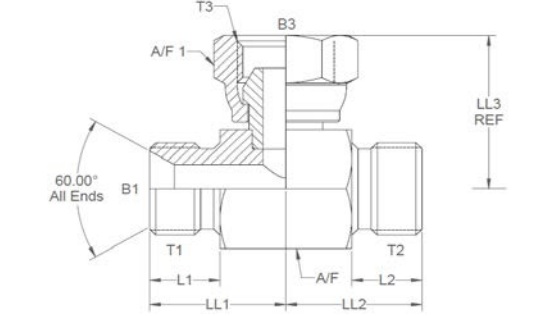

T1, T2 & T3 (")
B1 (")
B3 (")
L1 & L2 (")
LL1 & LL2 (")
LL3 (")
AF & A/F1 (")
380114
ZMMFB02
1/8
0.137
0.125
0.44
0.77
0.83
14
380115
ZMMFB04
1/4
0.185
0.172
0.45
0.88
1.04
19
380116
ZMMFB06
3/8
0.312
0.271
0.52
1
1.22
22
380117
ZMMFB08
1/2
0.437
0.375
0.6
1.163
1.376
27
380118
ZMMFB12
3/4
0.625
0.562
0.75
1.48
1.569
32
380119
ZMMFB16
1
0.875
0.75
0.8
1.7
1.849
41
380120
ZMMFB20
1 1/4
1.125
0.875
0.8
1.925
2.183
50
