Configuration: 90° tee – BSPP male with 60° cone seating
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

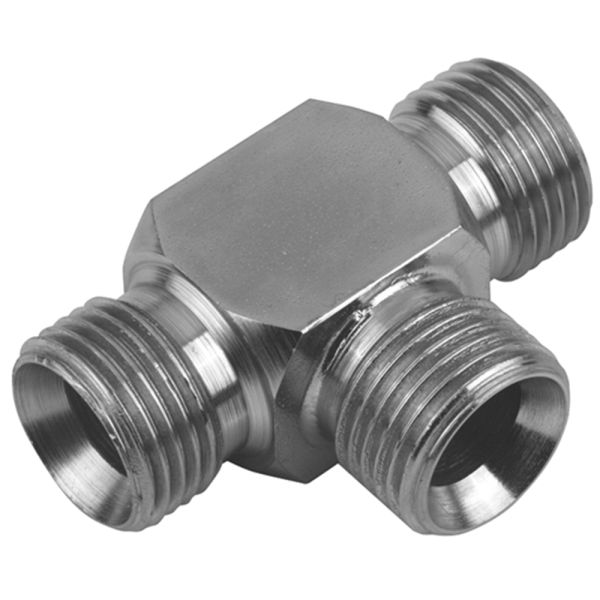

This 90° tee features a BSPP male connection with a precision 60° cone seating, providing a secure and leak-free metal-to-metal seal in hydraulic systems. Designed for high-pressure applications, it allows for reliable branching of hydraulic lines while maintaining a robust connection. The steel construction to BS EN 10277 ensures strength, accuracy, and durability, making it suitable for a wide range of industrial and hydraulic applications.
Key Features & Benefits
90° Tee Design: Enables efficient branching in hydraulic layouts
BSPP Male Connection: Widely used parallel thread form
60° Cone Seating: Ensures a strong, leak-free seal
High-Strength Steel: Long service life in demanding conditions
Precision Manufactured: Meets BS EN 10277 standards
ISO Certified Quality: Produced under ISO 9001 processes
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

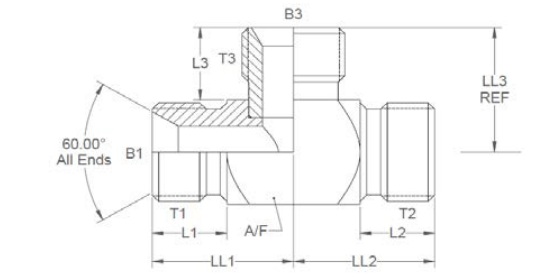

T1, T2 & T3 (")
B1 & B3 (")
L1 & L2 (")
L3 (")
LL1 & LL2 (")
LL3 (")
A/F (")
380231
ZMB04
1/4
0.185
0.45
0.47
0.832
0.782
0.625
380232
ZMB06
3/8
0.312
0.52
0.56
0.99
0.935
0.75
380233
ZMB08
1/2
0.437
0.6
0.6
1.135
1.037
0.875
380234
ZMB12
3/4
0.625
0.75
0.75
1.482
1.312
1.125
380235
ZMB16
1
0.812
0.8
0.84
1.737
1.527
1.375
380236
ZMB32
2
1.75
1
1
2.65
2.25
2.5
