Sizes Available: 1/4" x 1/4" x 1/8" - 1 1/4" x 1 1/4" x 1"
Material: Steel
Thread Type: BSPP male
Seal Type: 60° cone seating
Configuration: 90° tee with reducing branch
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

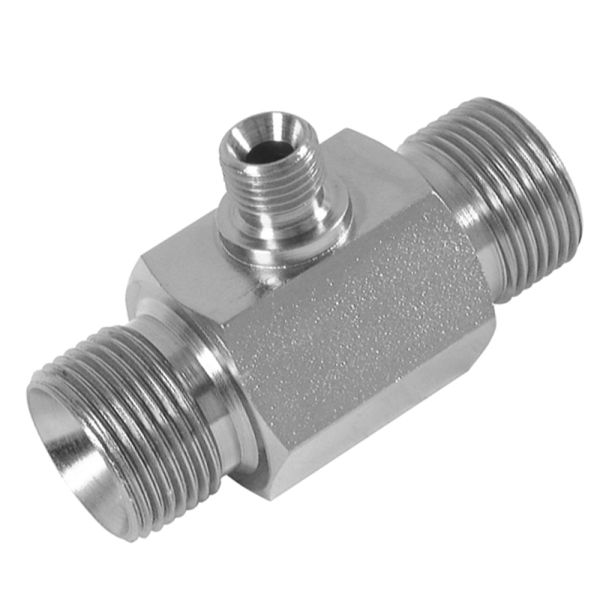

This 90° tee features a BSPP male connection with a 60° cone seating and a reduced-size branch, allowing connection of different hose or pipe sizes within the same fitting. The 60° cone ensures a secure metal-to-metal seal, while the reducing branch provides flexibility in system design. Manufactured from high-quality steel to BS EN 10277 standards, this fitting delivers strength, reliability, and leak-free performance in demanding hydraulic environments.
Key Features & Benefits
90° Tee with Reducing Branch: Allows different pipe or hose sizes to be connected
BSPP Male 60° Cone: Ensures a secure, leak-resistant seal
Strong Steel Construction: Designed for high-pressure use
Space-Efficient Design: Ideal for compact hydraulic layouts
Precision Manufactured: Complies with BS EN 10277
ISO Certified Quality: Produced under ISO 9001 quality management
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

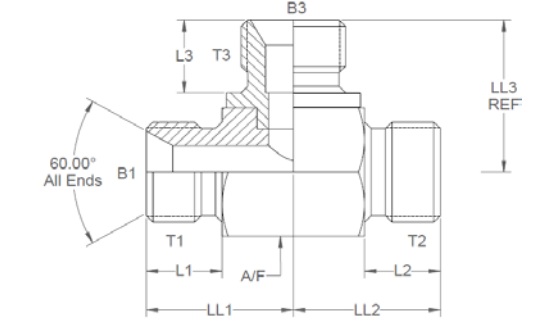

T1 & T2 (")
Branch Thread T3 (")
B1 (")
B3 (")
L1 & L2 (")
L3 (")
LL1 & LL2 (")
LL3 (")
A/F (mm)
380214
RZMB0402BS
1/4
1/8
0.250
0.156
0.450
0.440
0.880
0.895
0.710"
380215
RZMB0604BS
3/8
1/4
0.312
0.185
0.520
0.450
1.000
0.993
22
380216
RZMB0804BS
1/2
1/4
0.437
0.185
0.600
0.450
1.160
1.091
27
380217
RZMB1008BS
5/8
1/2
0.562
0.390
0.700
0.600
1.320
1.316
30
380218
RZMB1204BS
3/4
1/4
0.625
0.250
0.750
0.450
1.480
1.190
32
380219
RZMB1208BS
3/4
1/2
0.625
0.390
0.750
0.600
1.480
1.356
32
380220
RZMB1612BS
1
3/4
0.875
0.562
0.800
0.750
1.700
1.707
41
380221
RZMB2012BS
1 1/4
3/4
1.125
0.562
0.800
0.750
1.925
1.884
55
380222
RZMB2016BS
1 1/4
1
1.125
0.750
0.800
0.800
1.925
1.944
55
