Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

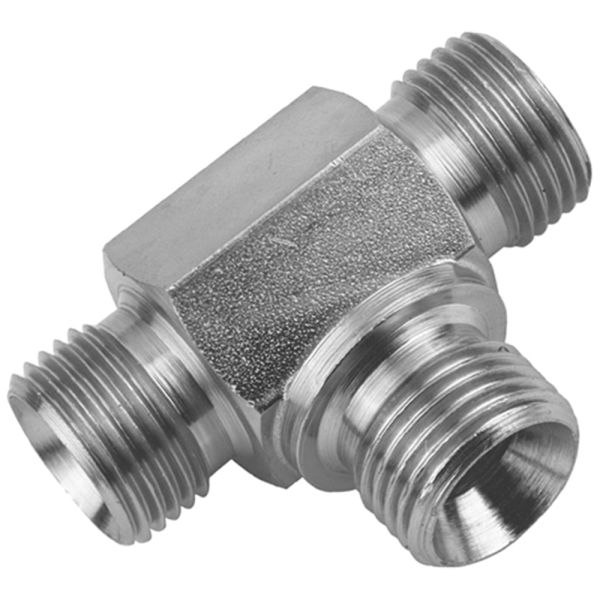

This 90° tee fitting features a BSPP male connection designed for use with a bonded seal, paired with a precision 60° cone seating. The bonded seal enhances leak prevention by providing an additional sealing surface, making it ideal for high-pressure hydraulic systems. Constructed from high-grade steel to BS EN 10277 standards, this tee ensures strength, accuracy, and reliability in demanding applications.
Key Features & Benefits
90° Tee for Bonded Seal: Enhanced sealing for leak prevention
BSPP Male with 60° Cone: Provides a robust metal-to-metal connection
Strong Steel Build: Suitable for high-pressure environments
Reliable in Demanding Applications: Excellent for industrial hydraulics
Manufactured to BS EN 10277: Precision engineering for long service life
ISO Certified Quality: Made under ISO 9001 quality standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

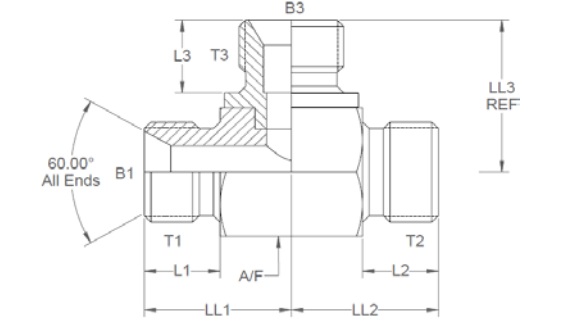

T1, T2 & T3 (")
B1 (")
B3 (")
L1, L2 & L3 (")
LL1 & LL2 (")
LL3 (")
A/F (mm)
380223
ZMB02BS
1/8
0.137
0.137
0.44
0.77
0.815
14
380224
ZMB04BS
1/4
0.185
0.185
0.45
0.88
0.934
19
380225
ZMB06BS
3/8
0.312
0.296
0.52
1
1.078
22
380226
ZMB08BS
1/2
0.437
0.39
0.6
1.162
1.256
27
380227
ZMB10BS
5/8
0.562
0.437
0.7
1.32
1.425
30
380228
ZMB12BS
3/4
0.625
0.562
0.75
1.48
1.53
32
380229
ZMB16BS
1
0.875
0.75
0.8
1.7
1.767
41
380230
ZMB24BS
1 1/4
1.125
0.875
0.8
1.925
1.969
50
