Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

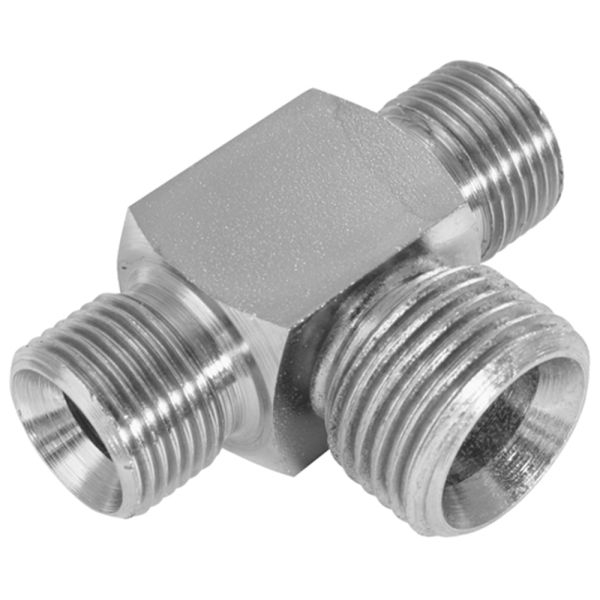

This 90° tee features a BSPP male connection with a precision 60° cone seating and an enlarged branch outlet, making it ideal for adapting to larger pipe or hose sizes. The 60° cone provides a reliable metal-to-metal seal for secure hydraulic connections, while the enlarging branch offers flexibility for system modifications and upgrades. Manufactured from durable steel to BS EN 10277 standards, it ensures strength, accuracy, and dependable performance in high-pressure hydraulic applications.
Key Features & Benefits
90° Tee with Enlarging Branch: Connects to larger hose or pipe sizes
BSPP Male 60° Cone: Delivers a leak-free, metal-to-metal seal
Adaptable Design: Ideal for system expansions or upgrades
Precision Engineered: Meets BS EN 10277 standards
ISO Certified Quality: Manufactured under ISO 9001 quality control
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
Thread Size (inch)
Thread Size (inch)
Branch Thread Size (inch)
380180
01913
3/8
3/8
1/2
