Seal Type: O-Ring Boss on one end, O-Ring Face Seal on the other
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
No O-Ring: This fitting is not supplied with o-rings and will need to be purchased separately.
Description

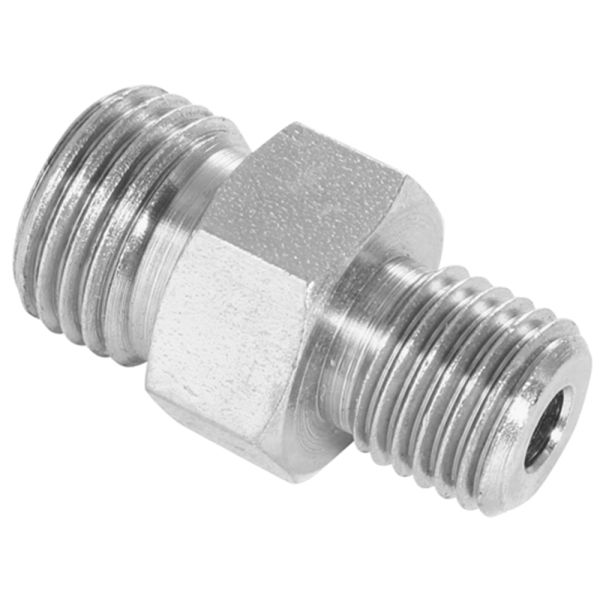

This adaptor combines an SAE male O-Ring Boss with an SAE male O-Ring Face Seal, providing a secure and leak-free connection between different SAE hydraulic fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it is designed for robust and reliable performance in hydraulic and pneumatic systems.
Key Features Benefits
Material Strength: High-quality mild steel construction for durability
Thread Configuration: SAE O-Ring Boss to SAE O-Ring Face Seal for system compatibility
Seal Type: O-Ring Boss and Face Seal ensure robust, leak-free sealing
Standard Compliance: Manufactured to BS EN 10277 for accurate fit
Versatile Application: Suitable for hydraulic and pneumatic systems using SAE connections
Temperature Performance: Operates reliably between -40°C and +120°C
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide

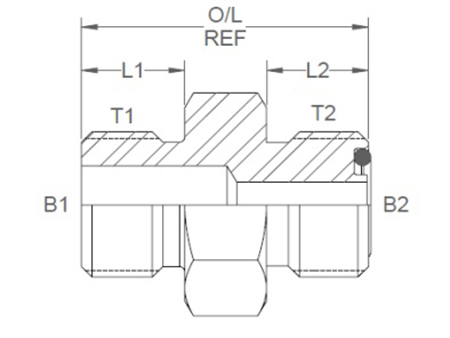

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (")
379384
21300
7/16
9/16
0.172
0.172
0.433
0.386
1.133
0.625
379385
21301
7/16
11/16
0.172
0.264
0.433
0.441
1.343
19mm
379386
21302
9/16
11/16
0.264
0.264
0.472
0.441
1.252
19mm
379387
21303
9/16
13/16
0.264
0.378
0.472
0.504
1.472
0.875
379388
21304
3/4
11/16
0.391
0.264
0.551
0.441
1.381
0.875
379389
21305
3/4
13/16
0.378
0.378
0.551
0.504
1.441
0.875
379390
21307
7/8
13/16
0.378
0.378
0.63
0.504
1.524
27mm
379391
21308
7/8
1
0.484
0.484
0.63
0.61
1.7
27mm
379392
21310
1 1/16
1 3/16
0.609
0.609
0.728
0.67
1.918
1.25
379393
21311
1 1/16
1 7/16
0.609
0.811
0.728
0.689
2.138
1.5
379394
21312
1 5/16
1 3/16
0.844
0.609
0.728
0.67
1.958
1.5
