Thread Type: SAE Male O-Ring Boss x BSPP Male (British Standard Parallel)
Thread Ends: SAE Male x BSPP Male
Seal Type: 60° Cone on BSPP end, SAE O-Ring Boss (supplied without O-Ring)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
No O-Ring: This fitting is not supplied with an o-ring and will need to be purchased separately
Description

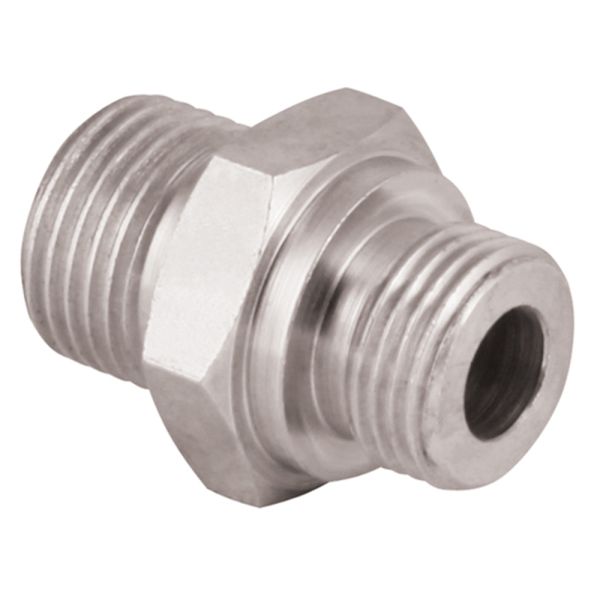

This adaptor combines an SAE male O-Ring Boss connection with a BSPP male 60° cone thread, supplied without the O-Ring. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a reliable, leak-free connection between SAE and BSPP hydraulic components, ensuring compatibility and long-lasting performance.
Key Features & Benefits
Material Strength: Robust mild steel construction ensures strength and durability
Thread Configuration: SAE male O-Ring Boss to BSPP male for mixed-thread connections
Seal Type: 60° cone on BSPP end, SAE O-Ring Boss design (O-Ring not included)
Standard Compliance: Built to BS EN 10277 for dimensional accuracy
Versatile Application: Ideal for hydraulic and pneumatic systems requiring SAE to BSPP conversion
Temperature Performance: Operational range from -40°C to +120°C
Quality Manufacturing: ISO 9001-certified production ensures consistent, high-quality fittings
Downloads
Burnett & Hillman Pressure Guide

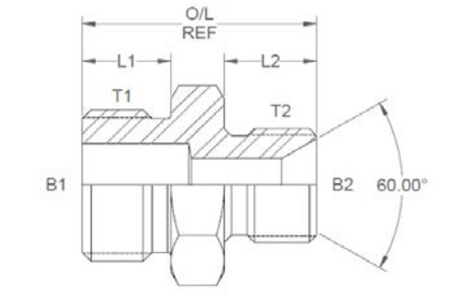

SKU
Product Code
T1 & T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379326
01326
1/4
0.063
0.25
0.3
0.45
1
19
379328
01323
3/8
0.125
0.375
0.297
0.52
1.187
22
379335
01341
1/2
0.234
0.5
0.36
0.6
1.33
27
379343
01314
3/4
0.391
0.659
0.438
0.75
1.658
32
