Seal Type: 37° Cone on JIC end, SAE Boss thread without O-Ring
Thread Type: SAE Boss Male (supplied without O-Ring) x JIC (Joint Industry Council)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

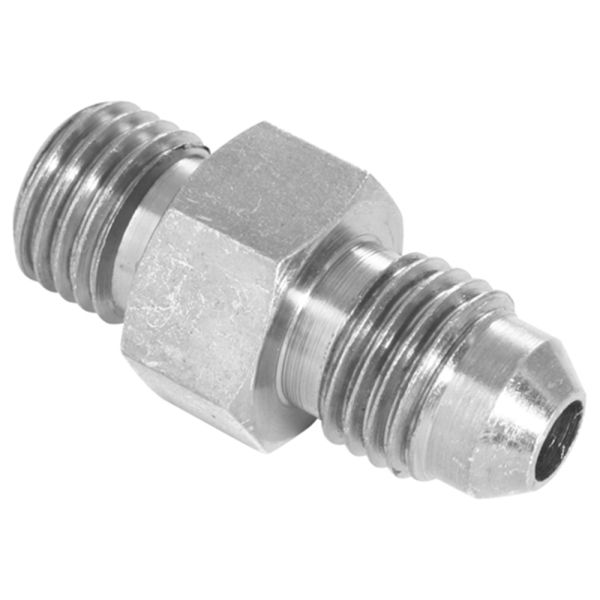

This adaptor features an SAE Boss male thread (supplied without an O-Ring) and a JIC male 37° cone connection, allowing seamless linking of SAE and JIC hydraulic components. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures durable, leak-free connections in demanding hydraulic and pneumatic applications.
Key Features & Benefits
Material Strength: Robust mild steel construction ensures long-lasting performance
Thread Configuration: SAE Boss male (less O-Ring) to JIC male for mixed-thread connectivity
Seal Type: 37° cone provides secure, leak-free metal-to-metal sealing
Standard Compliance: Produced to BS EN 10277 for precision threading and accuracy
Versatile Application: Ideal for hydraulic and pneumatic systems requiring SAE to JIC transitions
Temperature Performance: Operates reliably between -40°C and +120°C
Quality Manufacturing: Manufactured under ISO 9001-certified processes for consistent quality assurance
Downloads
Burnett & Hillman Pressure Guide

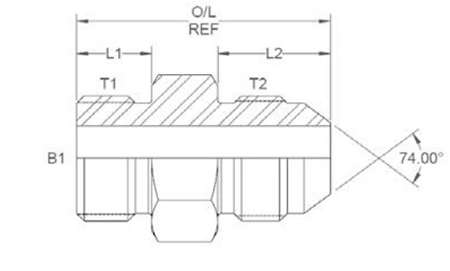

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (")
380736
01350
7/16
7/16
0.172
-
0.36
0.55
1.23
0.562
380737
01353
7/16
1/2
0.172
0.234
0.36
0.55
1.23
0.625
380738
01351
7/16
9/16
0.172
-
0.36
0.556
1.29
0.625
380739
01392
1/2
7/16
0.234
0.172
0.36
0.55
1.23
0.625
380740
01352
1/2
1/2
0.234
-
0.36
0.55
1.23
0.625
380741
01388
1/2
9/16
0.234
0.297
0.36
0.556
1.29
0.625
380742
01354
9/16
7/16
0.297
0.172
0.391
0.55
1.29
0.687
380743
01355
9/16
1/2
0.297
0.234
0.391
0.55
1.29
0.687
380744
01356
9/16
9/16
0.297
-
0.391
0.556
1.3
0.687
380745
01357
9/16
3/4
0.297
0.391
0.391
0.657
1.38
22mm
380746
01358
9/16
7/8
0.297
0.484
0.391
0.758
1.59
1
380747
01389
3/4
7/16
0.391
0.172
0.438
0.55
1.37
22mm
380748
01361
3/4
9/16
0.391
0.297
0.438
0.556
1.38
0.875
380749
01362
3/4
3/4
0.391
-
0.438
0.657
1.48
22mm
380750
01363
3/4
7/8
0.391
0.484
0.438
0.758
1.6
1
380751
01364
3/4
1 1/16
0.391
0.609
0.438
0.864
1.888
1.125
380752
01386
7/8
9/16
0.484
0.297
0.5
0.556
1.5
1
380753
01365
7/8
3/4
0.484
0.391
0.5
0.657
1.6
1
380754
01366
7/8
7/8
0.484
-
0.5
0.758
1.7
1
380755
01367
7/8
1 1/16
0.484
0.609
0.5
0.864
1.86
1.125
380756
01395
1 1/16
9/16
0.609
0.297
0.594
0.556
1.66
1.25
380757
01368
1 1/16
3/4
0.609
0.391
0.594
0.657
1.76
1.25
380758
01370
1 1/16
7/8
0.609
0.484
0.594
0.758
1.86
1.25
380759
01371
1 1/16
1 1/16
0.609
-
0.594
0.864
1.97
1.25
380760
01373
1 1/16
1 5/16
0.609
0.844
0.594
0.911
1.99
1.375
380761
01391
1 3/16
1 3/16
0.719
-
0.594
0.89
1.99
1.375
380762
01394
1 5/16
3/4
0.844
0.391
0.594
0.657
1.79
1.5
380763
01396
1 5/16
7/8
0.844
0.484
0.594
0.758
1.89
1.5
380764
01377
1 5/16
1 1/16
0.844
0.609
0.594
0.864
1.99
1.5
380765
01378
1 5/16
1 5/16
0.844
-
0.594
0.911
2.04
1.5
380766
01379
1 5/16
1 5/8
0.844
1.078
0.594
0.958
2.28
1.75
380767
01380
1 5/8
1 5/16
1.078
0.844
0.594
0.911
2.12
50mm
380768
01381
1 5/8
1 5/8
1.078
-
0.594
0.958
2.17
50mm
380769
01387
1 5/8
1 7/8
1.078
1.312
0.594
1.083
2.24
2.05
380770
01397
1 7/8
1 5/16
1.312
0.844
0.594
0.911
2.2
55mm
380771
01383
1 7/8
1 5/8
1.312
1.078
0.594
0.958
2.24
55mm
380772
01384
1 7/8
1 7/8
1.312
-
0.594
1.083
2.37
55mm
380773
01369
1 7/8
2 1/2
1.312
1.781
0.594
1.333
2.59
70mm
380774
01385
2 1/2
2 1/2
1.781
-
0.594
1.333
2.78
70mm
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
