Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

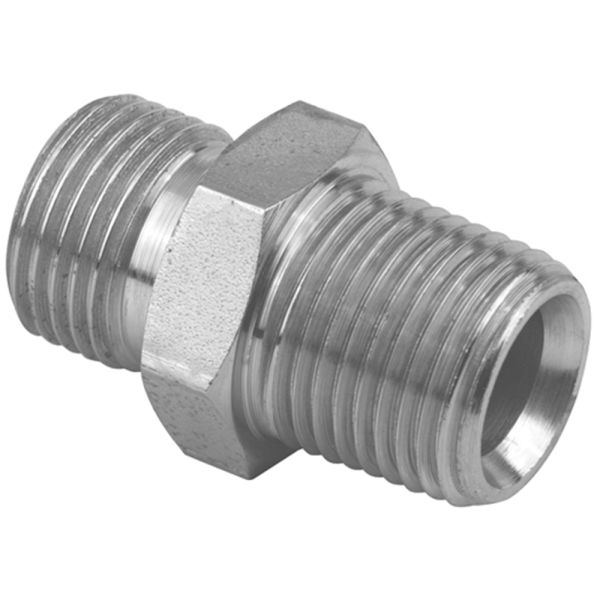

This reducing adaptor features an NPTF male thread on one end and a BSPP male 60° cone on the other, enabling connection between different-sized American NPTF and British BSPP fittings. Manufactured by Burnett & Hillman in mild steel to BS EN 10277 standards, it offers strong sealing performance, durability, and reliability for hydraulic and pneumatic applications.
Key Features & Benefits
Material Strength: Constructed from mild steel for durability under pressure
Thread Configuration: Reducing NPTF male-to-BSPP male for size compatibility
Seal Type: 60° cone on BSPP end ensures robust, leak-free metal-to-metal sealing
Standard Compliance: Produced to BS EN 10277 for dimensional precision
Versatile Application: Suitable for mixed-size hydraulic and pneumatic connections
Temperature Performance: Reliable operation between -40°C and +120°C
Quality Manufacturing: ISO 9001-certified manufacturing for consistent product quality
Downloads
Burnett & Hillman Pressure Guide

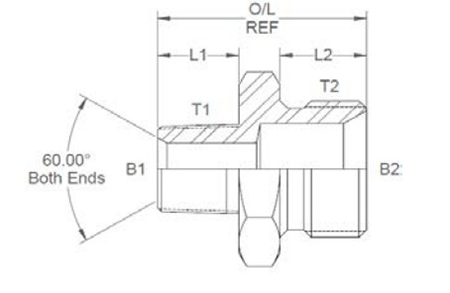

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379168
1NB0204
1/8
1/4
0.185
-
0.38
0.45
1.07
19
379169
1NB0206
1/8
3/8
0.188
0.31
0.38
0.52
1.18
22
379170
1NB0208
1/8
1/2
0.188
0.44
0.38
0.60
1.29
27
379171
1NB0402
1/4
1/8
0.25
0.14
0.56
0.44
1.30
14
379173
1NB0406
1/4
3/8
0.25
0.31
0.56
0.52
1.33
22
379174
1NB0408
1/4
1/2
0.25
0.44
0.56
0.60
1.47
27
379175
1NB0412
1/4
3/4
0.25
0.72
0.56
0.75
1.62
32
379176
1NB0602
3/8
1/8
0.38
0.19
0.56
0.44
1.30
0.687"
379177
1NB0604
3/8
1/4
0.38
0.19
0.56
0.45
1.31
19
379179
1NB0608
3/8
1/2
0.38
0.44
0.56
0.60
1.46
27
379180
1NB0610
3/8
5/8
0.38
0.59
0.56
0.70
1.58
30
379181
1NB0612
3/8
3/4
0.38
0.66
0.56
0.75
1.62
32
379182
1NB0802
1/2
1/8
0.50
0.16
0.75
0.44
1.49
22
379183
1NB0804
1/2
1/4
0.50
0.19
0.75
0.45
1.50
22
379184
1NB0806
1/2
3/8
0.50
0.31
0.75
0.52
1.61
22
379186
1NB0810
1/2
5/8
0.5
0.562
0.75
0.7
1.76
30
379187
1NB0812
1/2
3/4
0.5
0.718
0.75
0.75
1.81
32
379188
1NB0816
1/2
1
0.5
0.875
0.75
0.8
1.93
41
379189
1NB1204
3/4
1/4
0.687
0.25
0.75
0.45
1.55
27
379190
1NB1206
3/4
3/8
0.687
0.312
0.75
0.52
1.62
27
379191
1NB1208
3/4
1/2
0.687
0.437
0.75
0.6
1.7
27
379192
1NB1210
3/4
5/8
0.687
0.593
0.75
0.7
1.81
30
379194
1NB1216
3/4
1
0.687
0.875
0.75
0.8
1.96
41
379195
1NB1224
3/4
1 1/2
0.687
1.437
0.95
0.85
2.3
55
379196
1NB1604
1
1/4
0.843
0.185
0.97
0.45
1.8
1.375"
379197
1NB1606
1
3/8
0.843
0.375
0.97
0.52
1.87
1.375"
379198
1NB1608
1
1/2
0.843
0.437
0.97
0.6
2.07
1.375"
379199
1NB1612
1
3/4
0.843
0.659
0.97
0.75
2.22
1.375"
379201
1NB1620
1
1 1/4
0.843
1.125
0.97
0.8
2.27
50
379202
1NB2012
1 1/4
3/4
1.203
0.659
0.97
0.75
2.17
1.75"
379203
1NB2016
1 1/4
1
1.203
0.875
0.97
0.8
2.27
1.75"
379205
1NB2024
1 1/4
1 1/2
1.203
1.437
0.97
0.85
2.32
55
379206
1NB2032
1 1/4
2
1.203
1.812
0.97
1
2.47
70
379207
1NB2416
1 1/2
1
1.312
0.875
1
0.8
2.3
50
379208
1NB2420
1 1/2
1 1/4
1.312
1.125
1
0.8
2.3
50
379210
1NB2432
1 1/2
2
1.312
1.812
1
1
2.5
70
379211
1NB3216
2
1
1.812
0.875
1.03
0.8
2.33
65
379212
1NB3224
2
1 1/2
1.812
1.312
1.03
0.85
2.43
65
379214
1NB3240
2
2 1/2
1.812
2.37
1.03
1
2.65
3.25"
379215
1NB4032
2 1/2
1
-
-
-
-
-
-
379217
1NB4832
3
2
2.62
1.812
1.6
1
3.23
90
379218
1NB4840
3
2 1/2
2.62
2.37
1.6
1
3.23
90
