Thread Standard: NPTF threads manufactured to ANSI B1.20.3
Standard Compliance: Produced to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

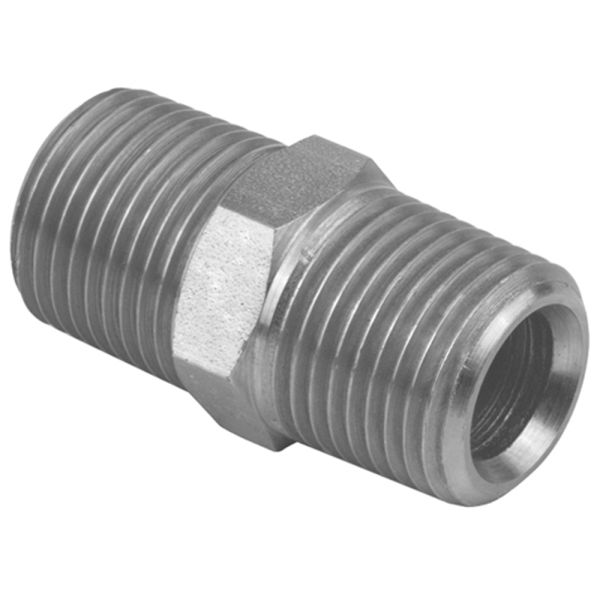

This reducing NPTF male adaptor from Burnett & Hillman is designed to connect NPTF threads of different sizes in hydraulic and pneumatic systems. Manufactured from high-quality mild steel to BS EN 10277 standards, with threads produced to ANSI B1.20.3 specifications, it ensures a precise fit and a secure, leak-free connection under high-pressure conditions.
Key Features & Benefits
Material Strength: Strong mild steel construction for durability
Thread Configuration: Reducing NPTF male for mixed-size threaded connections
Thread Standard: NPTF threads manufactured to ANSI B1.20.3 for accuracy
Standard Compliance: Produced to BS EN 10277 for dimensional precision
Versatile Use: Suitable for hydraulic and pneumatic applications requiring tapered adaptors
Temperature Performance: Operates effectively from -40°C to +120°C
Quality Manufacturing: ISO 9001-certified production for reliable performance
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

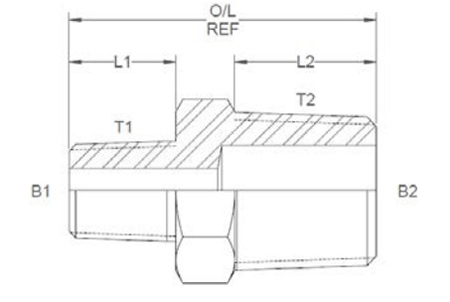

T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A /F
379220
1N0204
1/8
1/4
0.188
0.25
0.38
0.56
1.31
0.562"
379221
1N0208
1/8
1/2
0.188
0.5
0.38
0.75
1.475
22mm
379223
1N0406
1/4
3/8
0.25
0.375
0.56
0.56
1.45
0.687"
379224
1N0408
1/4
1/2
0.25
0.5
0.56
0.75
1.67
22mm
379225
1N0412
1/4
3/4
0.25
0.687
0.56
0.75
1.705
27mm
379227
1N0608
3/8
1/2
0.375
0.5
0.56
0.75
1.67
22mm
379229
1N0812
1/2
3/4
0.5
0.687
0.75
0.75
1.925
27mm
379230
1N0816
1/2
1
0.5
0.843
0.75
0.97
2.145
1.375"
379231
1N0820
1/2
1 1/4
0.5
1.203
0.75
0.97
2.185
1.75"
379232
1N0824
1/2
1 1/2
0.5
1.312
0.75
1
2.25
2.05"
379234
1N1216
3/4
1
0.656
0.843
0.75
0.97
2.16
1.375"
379235
1N1220
3/4
1 1/4
0.656
1.203
0.75
0.97
2.22
1.75"
379237
1N1620
1
1/4
0.25
0.843
0.56
0.97
1.925
1.375"
379239
1N2024
1 1/4
1 1/2
1.203
1.312
0.97
1
2.505
50mm
379240
1N2032
1 1/4
2
1.203
1.812
0.97
1.03
2.65
65mm
