Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description
This reducing BSPT male adaptor from Burnett & Hillman is designed for connecting different BSPT thread sizes within hydraulic and pneumatic systems. Manufactured from mild steel to BS EN 10277 standards, it ensures a secure, leak-free connection, offering a reliable solution for mixed-size tapered fittings in high-pressure applications.
Key Features & Benefits
Material Strength: Robust mild steel construction for long service life
Thread Configuration: Reducing BSPT male threads for joining different fitting sizes
Standard Compliance: Manufactured to BS EN 10277 for precise and reliable threading
Versatile Application: Ideal for hydraulic and pneumatic systems requiring size adaptation
Temperature Performance: Operates effectively between -40°C and +120°C
Leak-Free Seal: Tapered thread design ensures a strong, pressure-tight seal
Quality Manufacturing: Produced under ISO 9001 standards for consistent quality assurance
Downloads
Burnett & Hillman Pressure Guide

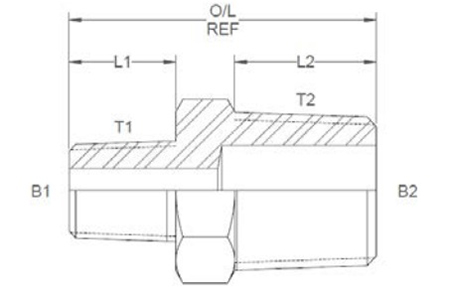

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F
379138
1BT0204
1/8
1/4
0.187
0.25
0.41
0.58
1.3
0.562
379140
1BT0406
1/4
3/8
0.25
0.375
0.58
0.59
1.47
0.687
379141
1BT0408
1/4
1/2
0.25
0.5
0.58
0.76
1.66
22mm
379143
1BT0608
3/8
1/2
0.375
0.5
0.59
0.76
1.67
22mm
379145
1BT0812
1/2
3/4
0.5
0.687
0.76
0.77
1.95
27mm
379147
1BT1216
3/4
1
0.687
0.875
0.77
0.99
2.26
1.375
379148
1BT1220
3/4
1 1/4
0.687
1.203
0.77
1
2.27
1.75
379150
1BT1620
1
1 1/4
0.875
1.203
0.99
1
2.49
1.75
379151
1BT1624
1
1 1/2
0.875
1.312
0.99
1.17
2.67
50mm
379152
1BT2032
1 1/4
2
1.203
1.812
1
1.18
2.73
65mm
379154
1BT2432
1 1/2
2
1.312
1.812
1.17
1.18
2.9
65mm
