Thread Type: NPTF (National Pipe Taper Fuel) x JIC (Joint Industry Council)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

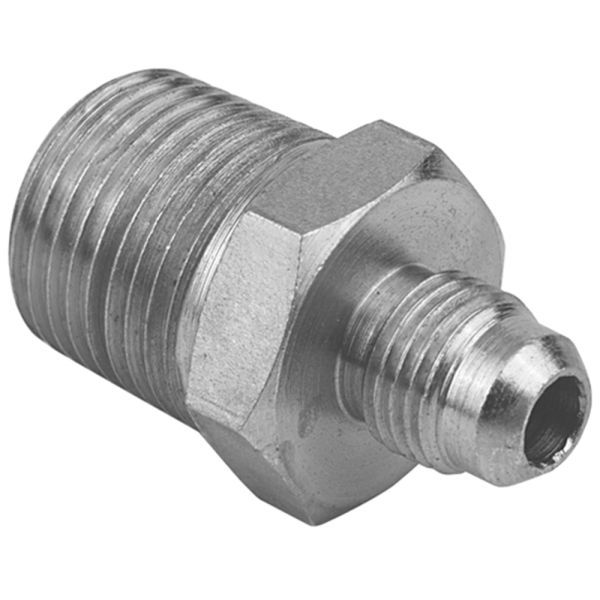

This adaptor features an NPTF male thread on one end and a JIC male 37° cone on the other, enabling reliable connections between NPTF and JIC hydraulic fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides durable, leak-free performance in high-pressure hydraulic and pneumatic systems.
Key Features & Benefits
Material Strength: Strong mild steel construction for long-lasting reliability
Thread Configuration: NPTF male to JIC male for mixed-thread connections
Seal Type: 37° cone on JIC end for secure metal-to-metal sealing
Standard Compliance: Produced to BS EN 10277 for dimensional accuracy
Versatile Use: Suitable for hydraulic and pneumatic systems requiring NPTF to JIC adaptability
Temperature Performance: Operates effectively between -40°C and +120°C
Quality Manufacturing: ISO 9001-certified production ensures consistent quality
Downloads
Burnett & Hillman Pressure Guide

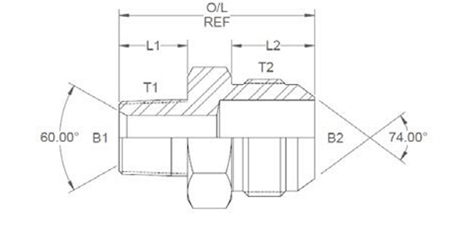

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (")
380518
1NJ0207
1/8
7/16
0.172
-
0.38
0.55
1.22
0.5
380519
1NJ0208
1/8
1/2
0.188
0.234
0.38
0.55
1.22
0.562
380520
1NJ0209
1/8
9/16
0.188
0.297
0.38
0.556
1.22
0.625
380521
1NJ0407
1/4
7/16
0.25
0.172
0.56
0.55
1.42
0.562
380522
1NJ0408
1/4
1/2
0.25
0.234
0.56
0.55
1.42
0.562
380523
1NJ0409
1/4
9/16
0.25
0.297
0.56
0.556
1.43
0.625
380524
1NJ0412
1/4
3/4
0.25
0.391
0.56
0.657
1.43
0.812
380525
1NJ0414
1/4
7/8
0.25
0.484
0.56
0.758
1.69
1
380526
1NJ0607
3/8
7/16
0.375
0.172
0.56
0.55
1.42
0.687
380527
1NJ0608
3/8
1/2
0.375
0.234
0.56
0.55
1.42
0.687
380528
1NJ0609
3/8
9/16
0.297
-
0.56
0.556
1.43
0.687
380529
1NJ0612
3/8
3/4
0.375
0.391
0.56
0.657
1.53
0.812
380530
1NJ0614
3/8
7/8
0.375
0.484
0.56
0.758
1.79
1
380531
1NJ0807
1/2
7/16
0.5
0.172
0.75
0.55
1.68
22mm
380532
1NJ0812
1/2
3/4
0.391
-
0.75
0.657
1.79
1
380533
1NJ0814
1/2
7/8
0.484
-
0.75
0.758
1.89
1.125
380534
1NJ0817
1/2
1 1/16
0.5
0.609
0.75
0.864
1.95
1.125
380535
1NJ0821
1/2
1 5/16
0.5
0.844
0.75
0.911
2.15
1.375
380536
1NJ1207
3/4
7/16
0.687
0.172
0.75
0.55
1.75
27mm
380537
1NJ1209
3/4
9/16
0.687
0.297
0.75
0.556
1.85
27mm
380538
1NJ1214
3/4
7/8
0.687
0.484
0.75
0.758
1.96
27mm
380539
1NJ1217
3/4
1 1/16
0.609
-
0.75
0.864
2.06
1.125
380540
1NJ1226
3/4
1 5/8
0.687
1.078
0.75
0.958
2.36
46mm
380541
1NJ1612
1
3/4
0.843
0.391
0.97
0.657
2.05
1.375
380542
1NJ1614
1
7/8
0.843
0.484
0.97
0.758
2.15
1.375
380543
1NJ1621
1
1 5/16
0.844
-
0.97
0.911
2.3
1.375
380544
1NJ1626
1
1 5/8
0.844
1.078
0.97
0.958
2.4
1.75
380545
1NJ1630
1
1 7/8
0.844
1.312
0.97
1.083
2.51
5mm
380546
1NJ2017
1 1/4
1 1/16
1.203
0.609
0.97
0.864
2.35
1.75
380547
1NJ2021
1 1/4
1 5/16
1.203
0.844
0.97
0.911
2.4
1.75
380548
1NJ2030
1 1/4
1 7/8
1.203
1.312
0.97
1.083
2.613
50mm
380549
1NJ2040
1 1/4
2 1/2
1.203
1.781
0.97
1.333
2.86
65mm
380550
1NJ2417
1 1/2
1 1/16
1.312
0.609
1
0.864
2.46
50mm
380551
1NJ2421
1 1/2
1 5/16
1.312
0.844
1
0.911
2.51
50mm
380552
1NJ2426
1 1/2
1 5/8
1.312
1.078
1
0.958
2.55
50mm
380553
1NJ2430
1 1/2
1 7/8
1.312
-
1
1.083
2.68
50mm
380554
1NJ2440
1 1/2
2 1/2
1.312
1.781
1
1.333
2.95
65mm
380555
1NJ3226
2
1 5/8
1.812
1.078
1.03
0.958
2.73
65mm
380556
1NJ3230
2
1 7/8
1.812
1.312
1.03
1.083
2.86
65mm
380557
1NJ3240
2
2 1/2
1.781
-
1.03
1.333
3.11
65mm
