Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure Burst Press
ure: 4× working pressure
Torque Guidance: Recommended torque based on lightly oiled steel threads
Description
This adaptor combines an NPTF male thread with a BSPP male 60° cone, allowing secure connections between American NPTF fittings and British BSPP hydraulic components. Manufactured by Burnett & Hillman from mild steel to BS EN 10277 standards, it provides durable, leak-free performance in high-pressure hydraulic and pneumatic systems.
Key Features & Benefits
Material Strength: Durable mild steel construction for robust system integration
Thread Configuration: NPTF male x BSPP male for mixed thread adaptability
Seal Type: 60° cone on BSPP end ensures strong metal-to-metal sealing
Standard Compliance: Manufactured to BS EN 10277 for precision and compatibility
Versatile Use: Suitable for hydraulic and pneumatic applications requiring NPTF to BSPP connections
Temperature Performance: Operates effectively from -40°C to +120°C
Quality Manufacturing: Produced in ISO 9001-certified facilities for consistent reliability
Downloads
Burnett & Hillman Pressure Guide

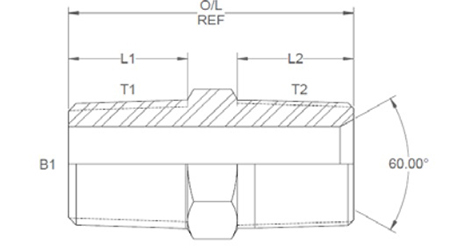

SKU
Product Code
T1 & T2 (")
B1 & B2 (")
L1 (")
L2 (")
O/L (")
A/F
379167
1NB0202
1/8
0.186
0.41
0.38
1.02
0.437"
379172
1NB0404
1/4
0.25
0.58
0.56
1.44
0.562"
379178
1NB0606
3/8
0.375
0.59
0.56
1.45
0.687"
379185
1NB0808
1/2
0.5
0.76
0.75
1.83
22mm
379193
1NB1212
3/4
0.687
0.77
0.75
1.94
27mm
379200
1NB1616
1
0.843
0.99
0.97
2.46
1.375"
379204
1NB2020
1 1/4
1.203
1.1
0.97
2.57
46mm
379209
1NB2424
1 1/2
1.312
1.17
1
2.67
50mm
379213
1NB3232
2
1.812
1.18
1.03
2.76
65mm
379216
1NB4040
2 1/2
2.375/2.25
1.562
1.52
3.71
3.25"
