Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque for lightly oiled steel threads
Description

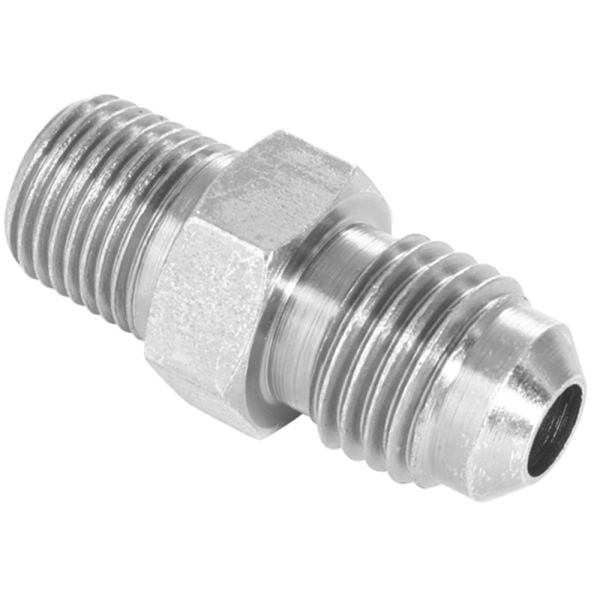

This adaptor features an NPT male thread on one end and an SAE male 45° external flare on the other, allowing secure, leak-free connections between NPT and SAE hydraulic fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures durability, compatibility, and reliable sealing for hydraulic and pneumatic systems.
Key Features & Benefits
Material Strength: Robust mild steel construction for long-lasting reliability
Thread Configuration: NPT male to SAE male for mixed-thread adaptability
Seal Type: 45° external flare on SAE end for strong metal-to-metal sealing
Standard Compliance: Manufactured to BS EN 10277 for precise fit and performance
Versatile Application: Ideal for hydraulic and pneumatic systems requiring NPT to SAE connections
Temperature Performance: Operates effectively from -40°C to +120°C
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent product quality
Downloads
Burnett & Hillman Pressure Guide

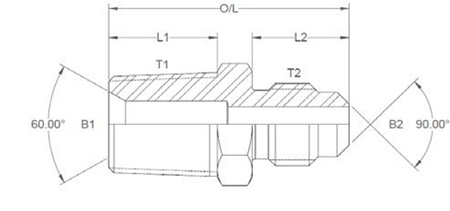

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F
379371
01050
1/8
7/16
0.188
-
0.38
0.5
1.06
0.5"
379372
01052
1/4
7/16
0.25
0.188
0.56
0.5
1.24
0.562"
379373
01054
1/4
5/8
0.25
0.281
0.56
0.62
1.395
0.687"
379374
01056
3/8
7/16
0.375
0.188
0.56
0.5
1.46
0.687"
379375
01058
3/8
5/8
0.375
0.281
0.56
0.62
1.48
0.687"
379376
01057
3/8
3/4
0.375
0.406
0.56
0.75
1.635
0.812"
379377
01060
1/2
5/8
0.5
0.281
0.75
0.62
1.67
22mm
379378
01061
1/2
3/4
0.5
0.406
0.75
0.75
1.825
22mm
379379
01062
1/2
7/8
0.5
-
0.75
0.88
2
0.875"
379380
01063
1/2
1 1/16
0.5
0.625
0.75
1
2.18
1.125"
379381
01065
3/4
3/4
0.635
0.406
0.75
0.75
1.825
1.1"
379382
01066
3/4
7/8
0.635
0.5
0.75
0.88
2
1.1"
379383
01064
3/4
1 5/8
-
-
-
-
-
-
