Thread Type: Metric Male (1mm pitch) x BSPP (British Standard Parallel)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

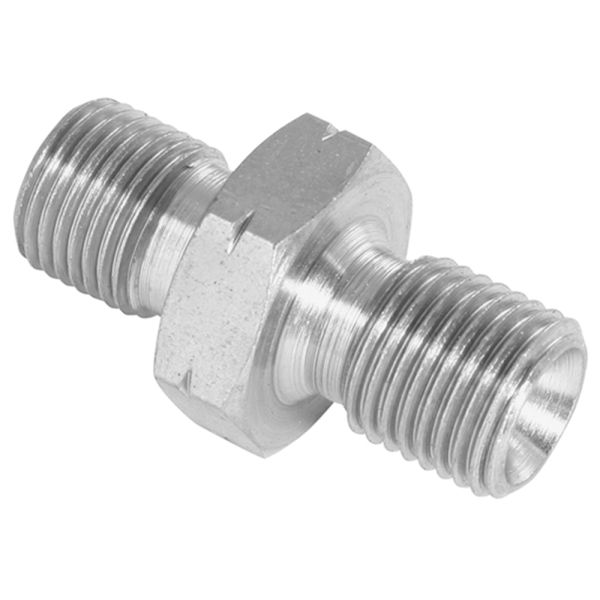

This adaptor features a Metric male thread with a 1mm pitch on one end and a BSPP male thread with a 60° cone seal on the other. Manufactured by Burnett & Hillman from mild steel to BS EN 10277 standards, it provides a precise, leak-free connection between Metric and BSPP hydraulic components, ensuring durability and compatibility for high-pressure systems.
Key Features & Benefits
Material Strength: High-quality mild steel for long-lasting performance
Thread Configuration: Metric male (1mm pitch) to BSPP male for mixed-thread connections
Seal Type: 60° cone on BSPP end ensures secure, leak-free sealing
Standard Compliance: Manufactured to BS EN 10277 for dimensional accuracy
Versatile Application: Ideal for hydraulic and pneumatic systems requiring Metric to BSPP connections
Temperature Performance: Suitable for operation from -40°C to +120°C
Quality Manufacturing: Produced under ISO 9001-certified processes for reliable performance
Downloads
Burnett & Hillman Pressure Guide

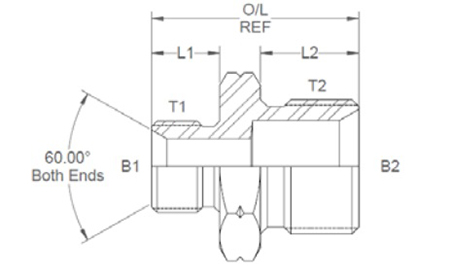

SKU
Product Code
T1
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379242
10544
M10 x 1
1/8
0.137
-
0.49
0.44
1.13
14
379243
10545
M10 x 1
1/4
0.171
0.185
0.49
0.45
1.14
19
379244
10548
M10 x 1
3/8
0.171
0.312
0.49
0.52
1.27
22
379245
10543
M12 x 1
1/8
0.197
0.137
0.49
0.44
1.15
17
379246
10546
M12 x 1
1/4
0.197
0.185
0.49
0.45
1.185
19
379247
10541
M14 x 1
1/4
0.296
0.185
0.49
0.45
1.17
19
