Thread Type: Metric Male (1.5mm pitch) x JIC (Joint Industry Council)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

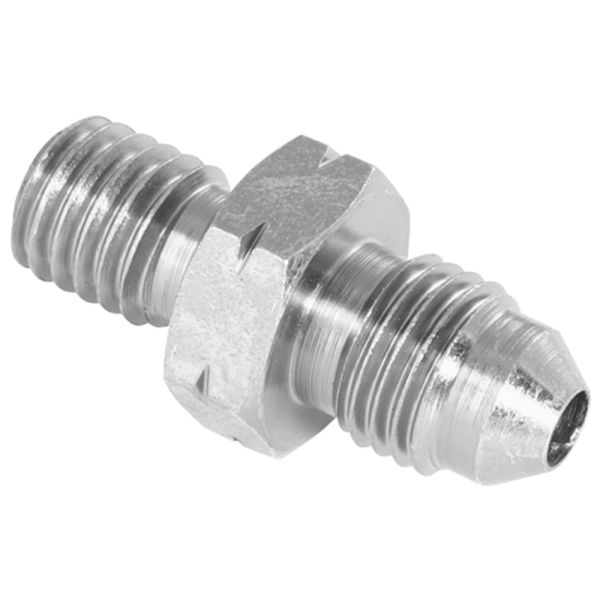

This adaptor connects a Metric male thread (1.5mm pitch) to a JIC male 37° cone, providing a reliable solution for joining Metric and JIC hydraulic fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures secure, leak-free connections suitable for high-pressure hydraulic and pneumatic systems.
Key Features & Benefits
Material Strength: Durable mild steel construction for long-lasting performance
Thread Configuration: Metric male (1.5mm pitch) to JIC male for mixed-thread adaptability
Seal Type: 37° cone on JIC end for robust, leak-free sealing
Standard Compliance: Produced to BS EN 10277 for precision and reliability
Versatile Use: Ideal for hydraulic and pneumatic systems requiring Metric to JIC connections
Temperature Performance: Operates effectively from -40°C to +120°C
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

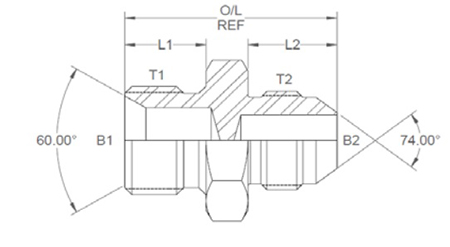

T1 (mm)
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F
380630
01265
10
7/16
0.172
0.49
0.55
1.27
0.625"
380631
01274
12
7/16
0.197
0.172
0.49
0.55
1.29
17mm
380632
01284
12
9/16
0.197
0.297
0.49
0.556
0.556
17mm
380633
01286
12
3/4
0.197
0.391
0.49
0.657
1.457
0.812"
380634
01268
14
3/8
0.296
0.125
0.49
0.48
1.19
19mm
380635
01291
14
7/16
0.296
0.172
0.49
0.55
1.29
19mm
380636
01287
14
9/16
0.275
0.49
0.556
1.316
19mm
380637
01288
14
3/4
0.296
0.391
0.49
0.657
1.457
0.812"
380638
01272
14
7/8
0.296
0.484
0.49
0.758
1.528
1"
380639
01295
16
7/16
0.375
0.172
0.52
0.55
1.34
22mm
380640
01280
16
9/16
0.375
0.297
0.52
0.556
1.346
22mm
380641
01275
16
3/4
0.375
0.52
0.657
1.487
22mm
380642
01289
16
7/8
0.375
0.484
0.52
0.758
1.638
1"
380643
01299
18
7/16
0.437
0.172
0.52
0.55
1.34
24mm
380644
01276
18
9/16
0.437
0.297
0.52
0.556
1.346
24mm
380645
01281
18
3/4
0.437
0.391
0.52
0.657
1.487
24mm
380646
01283
18
7/8
0.437
0.484
0.52
0.758
1.548
1"
380647
01298
18
1 1/16
0.437
0.609
0.52
0.864
1.804
1.125
380648
01282
20
9/16
0.5
0.297
0.52
0.556
1.346
27mm
380649
01277
20
3/4
0.5
0.391
0.52
0.657
1.487
27mm
380650
01290
20
7/8
0.484
0.52
0.758
1.638
1"
380651
01270
20
7/16
-
-
-
-
-
-
380652
01285
22
9/16
0.562
0.297
0.54
0.556
1.366
27mm
380653
01278
22
3/4
0.562
0.391
0.54
0.657
1.497
27mm
380654
01279
22
7/8
0.562
0.484
0.54
0.758
1.658
27mm
380655
01294
22
1 1/16
0.562
0.609
0.54
0.864
1.774
1.125"
380656
01267
24
1 1/16
0.609
0.64
0.864
1.844
32mm
380657
01297
26
7/8
0.659
0.484
0.74
0.758
1.858
32mm
380658
01292
26
1 1/16
0.708
0.609
0.74
0.864
1.984
32mm
