Thread Type: Metric Male (1.5mm pitch) x BSPP (British Standard Parallel)
Standard Compliance: Manufactured to DIN 3852 Form A
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque for lightly oiled steel threads
Description

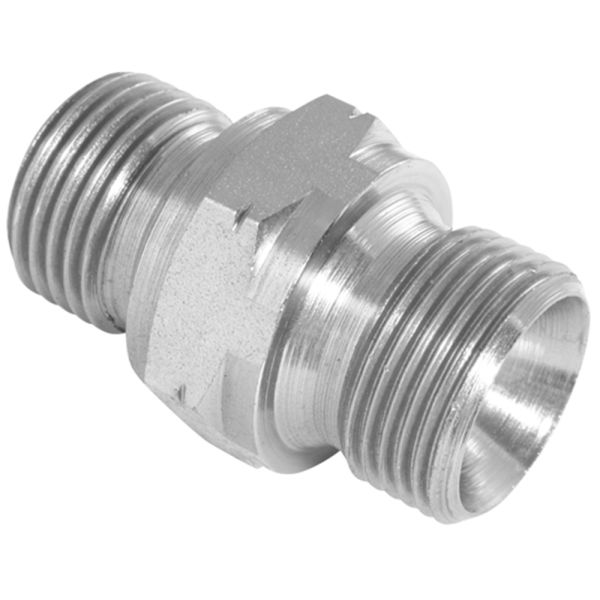

This adaptor features a Metric male thread with a 1.5mm pitch and a BSPP male 60° cone seal built to DIN 3852 Form A standards. Manufactured by Burnett & Hillman from high-quality mild steel, it provides a secure, leak-free connection between Metric and BSPP components. Ideal for hydraulic and pneumatic systems requiring reliable, high-pressure sealing and compliance with DIN specifications.
Key Features & Benefits
Material Strength: Durable mild steel ensures long service life
Thread Configuration: Metric male (1.5mm pitch) to BSPP male for mixed-thread adaptability
Seal Type: 60° cone to DIN 3852 Form A for reliable metal-to-metal sealing
Standard Compliance: Produced to DIN 3852 Form A for precise fit and performance
Versatile Use: Suitable for hydraulic and pneumatic applications requiring Metric to BSPP connections
Temperature Performance: Operates effectively from -40°C to +120°C
Quality Manufacturing: ISO 9001-certified production guarantees consistent reliability
Downloads
Burnett & Hillman Pressure Guide

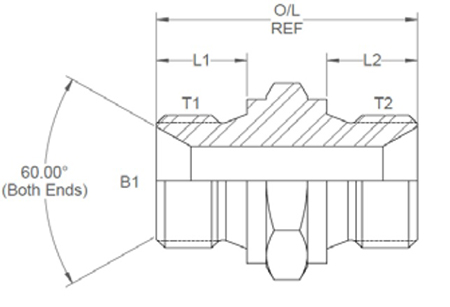

SKU
Product Code
T1
T2 (")
B1 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379248
60500
22
1/2
0.437
0.552
0.552
1.59
27
