Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

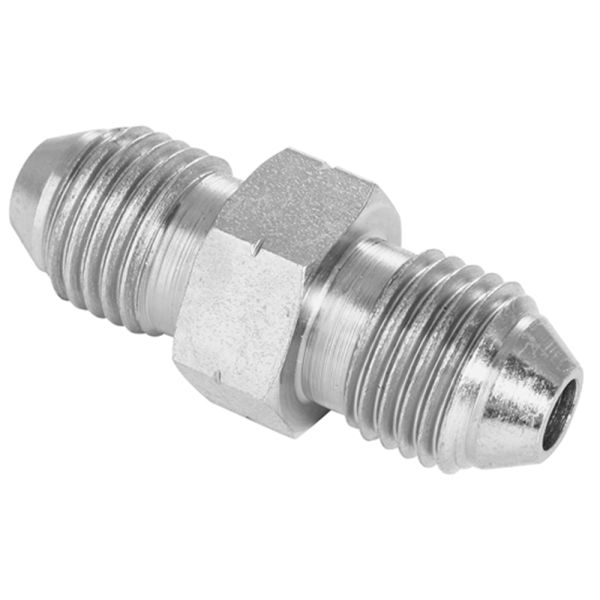

This adaptor features JIS male metric threads on both ends with a 30° cone seal for secure metal-to-metal sealing. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a strong, leak-free connection ideal for hydraulic and pneumatic applications requiring JIS metric thread compatibility.
Key Features & Benefits
Material Strength: Durable mild steel construction ensures reliability
Thread Configuration: JIS male x JIS male with metric threads for seamless connections
Seal Type: 30° cone offers robust, leak-free metal-to-metal sealing
Standard Compliance: Manufactured to BS EN 10277 for precision fit
Versatile Use: Suitable for hydraulic and pneumatic systems requiring JIS compatibility
Temperature Performance: Operates effectively between -40°C and +120°C
Quality Manufacturing: ISO 9001-certified production for consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU

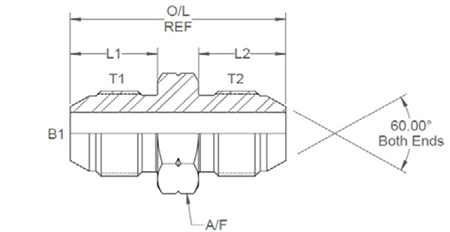

Product Code
T1 & T2
B1 (")
L1 (")
L2 (")
O/L (")
A/F
379158
9741-14
M14 x 1.5
0.205
0.690
0.690
1.700
17mm
379159
9741-18
M18 x 1.5
0.315
0.740
0.740
1.790
22mm
379160
9741-22
M22 x 1.5
0.437
0.850
0.850
2.100
27mm
379161
9741-24
M24 x 1.5
0.437
0.865
0.865
2.100
27mm
379162
9741-30
M30 x 1.5
0.710
0.950
0.950
2.337
1.5"
