Seal Type: 37° Cone on JIC end, 30° Cone on JIS Metric end
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

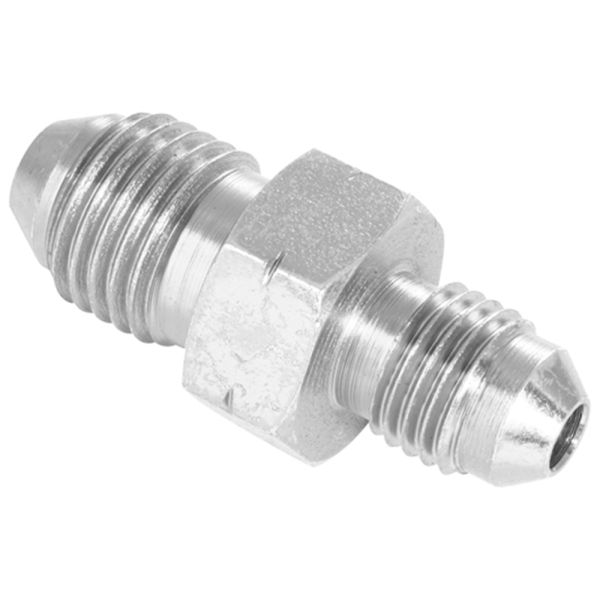

This adaptor connects JIC male 37° cone threads to JIS metric male 30° cone threads, enabling compatibility between American JIC and Japanese JIS fittings. Manufactured from high-quality mild steel to BS EN 10277 standards by Burnett & Hillman, it provides secure, leak-free metal-to-metal sealing for demanding hydraulic and pneumatic systems.
Key Features & Benefits
Material Strength: Durable mild steel construction for high-pressure use
Thread Configuration: JIC male 37° cone to JIS metric male 30° cone for mixed-thread compatibility
Seal Type: 37° and 30° cones ensure strong, leak-free metal-to-metal sealing
Standard Compliance: Built to BS EN 10277 for dimensional accuracy
Versatile Application: Ideal for hydraulic and pneumatic systems requiring JIC to JIS metric adaptability
Temperature Performance: Operates effectively between -40°C and +120°C
Quality Manufacturing: Produced under ISO 9001-certified standards for consistent reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
T2 (mm)
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F
380624
8751-04-14
7/16
M14
0.172
0.205
0.550
0.690
1.550
17mm
380625
8751-06-18
9/16
M18
0.297
0.315
0.556
0.740
1.620
22mm
380626
8751-08-22
3/4
M22
0.391
0.437
0.657
0.795
1.852
27mm
380627
8751-10-24
7/8
M24
0.484
0.484
0.758
0.865
2.010
27mm
380628
8751-12-30
1 1/16
M30
0.609
0.609
0.864
0.950
2.290
1.5"
380629
8751-16-33
1 5/16
M33
0.844
0.864
0.911
0.960
2.370
1.5"
