Seal Type: 37° Cone on JIC end, 30° Cone on JIS BSPP end
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

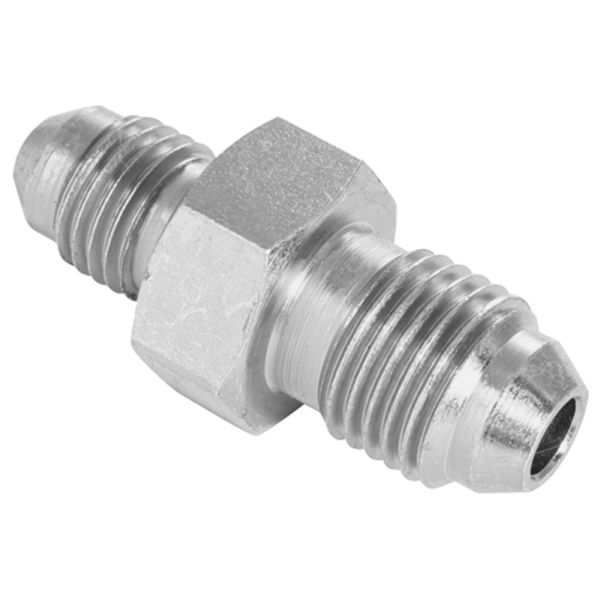

This adaptor combines a JIC male thread with a 37° cone and a JIS BSPP male thread with a 30° cone, allowing secure connections between JIC and JIS fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures reliable, leak-free performance for hydraulic and pneumatic applications requiring mixed-thread compatibility.
Key Features & Benefits
Material Strength: Mild steel construction ensures long-lasting durability
Thread Configuration: JIC male 37° cone to JIS BSPP male 30° cone for mixed-thread connections
Seal Type: 37° and 30° cones provide robust metal-to-metal sealing
Standard Compliance: Produced to BS EN 10277 for precision and accuracy
Versatile Use: Ideal for hydraulic and pneumatic systems requiring JIC to JIS BSPP adaptability
Temperature Performance: Operates effectively between -40°C and +120°C
Quality Manufacturing: ISO 9001-certified production ensures consistent reliability
Downloads
Burnett & Hillman Pressure Guide

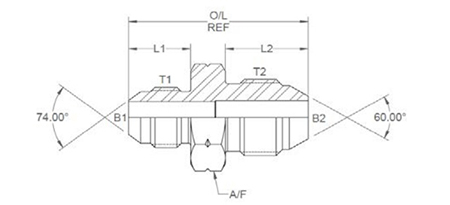

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F
380621
6811-04-04
7/16
1/4
0.172
0.197
0.550
0.610
1.480
14mm
380622
6811-06-06
9/16
3/8
0.297
0.315
0.556
0.683
1.554
19mm
380623
6811-08-08
3/4
1/2
0.391
0.433
0.657
0.758
1.808
27mm
