Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values based on lightly oiled steel threads
Description

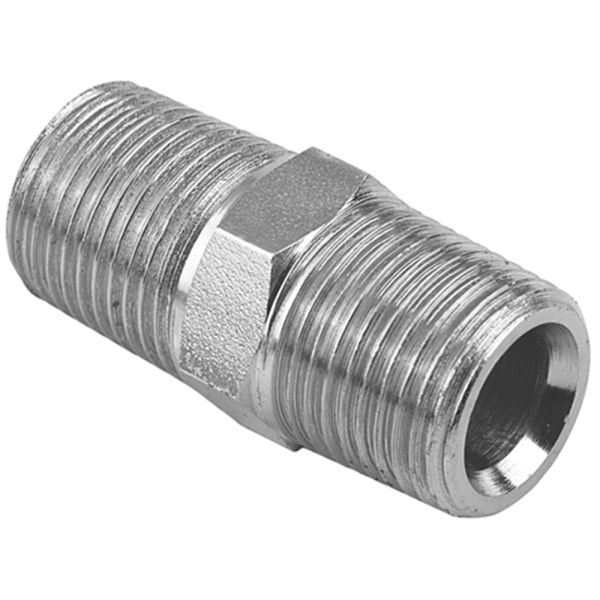

This Burnett & Hillman adaptor connects BSPT male threads to NPTF male threads, allowing compatibility between British Standard and American pipe systems. Manufactured from high-quality mild steel to BS EN 10277 standards, it ensures robust, leak-free performance in hydraulic and pneumatic applications. Designed for high-pressure use, it provides a reliable solution for mixed-thread connections.
Key Features & Benefits
Material Strength: Durable mild steel construction ensures long service life
Thread Configuration: BSPT male to NPTF male for mixed thread compatibility
Standard Compliance: Built to BS EN 10277 for dimensional accuracy
Versatile Use: Suitable for hydraulic and pneumatic systems requiring BSPT to NPTF transitions
Temperature Performance: Operates effectively between -40°C and +120°C
Leak-Free Design: Tapered threads provide a secure and pressure-tight seal
Quality Manufacturing: Produced in ISO 9001-certified facilities for consistent reliability
Downloads
Burnett & Hillman Pressure Guide

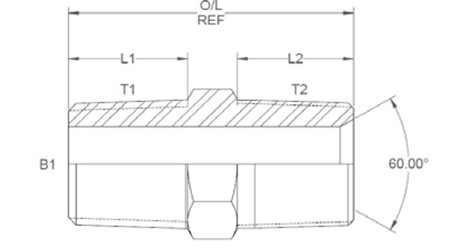

SKU
Product Code
T1 & T2 (")
B1 & B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
379126
1BNT0404
1/4
0.25
0.58
0.56
1.44
0.562"
379128
1BNT0606
3/8
0.375
0.59
0.56
1.45
0.687"
379130
1BNT0808
1/2
0.5
0.76
0.75
1.83
22
379131
1BNT1212
3/4
0.687
0.77
0.75
1.94
27
379132
1BNT1616
1
0.843
0.99
0.97
2.46
1.375"
379134
1BNT2424
1 1/2
1.312
1.17
1
2.67
50
379135
1BNT3232
2
1.812
1.18
1.03
2.76
65
379136
1BNT4040
2 1/2
2.375/2.25
1.562
1.52
3.71
3.25"
