Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

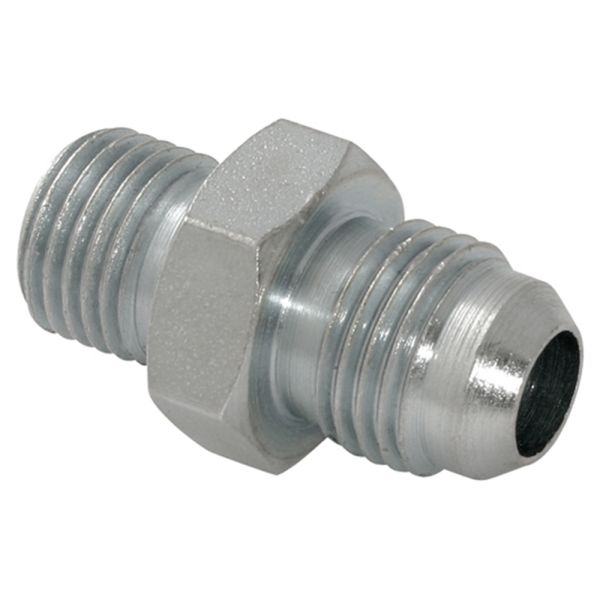

This adaptor features a BSPP male thread on one end and a JIC male 37° cone on the other, with a restrictor blank only. Manufactured by Burnett & Hillman from mild steel to BS EN 10277 standards, it is designed to control fluid flow while securely connecting BSPP and JIC fittings in hydraulic and pneumatic systems. It provides a durable, leak-free solution for applications requiring flow restriction.
Key Features & Benefits
Material Strength: High-quality mild steel for robust performance
Thread Configuration: BSPP male x JIC male for mixed-thread connections
Seal Type: 37° cone on JIC end ensures secure metal-to-metal sealing
Restrictor Feature: Supplied with a restrictor blank only for controlled fluid flow
Standard Compliance: Manufactured to BS EN 10277 for dimensional accuracy
Versatile Use: Suitable for hydraulic and pneumatic applications
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F
380558
13230
1/4
9/16
0.250
0.297
0.450
0.556
1.276
19mm
380559
13231
3/8
7/16
0.375
0.172
0.520
0.550
1.320
0.92"
380560
13232
3/8
9/16
0.312
0.297
0.520
0.556
1.346
22mm
380561
13233
1/2
9/16
0.437
0.297
0.600
0.556
1.426
27mm
