Thread Type: BSPP (British Standard Parallel Pipe)
Thread Standard: ISO 8434-6 / BS 5200
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque: Recommended torque values based on lightly oiled steel threads
Description

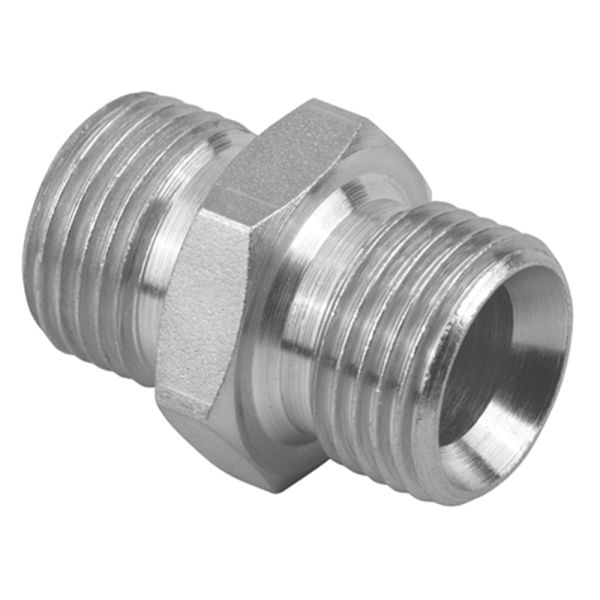

Engineered for reliable fluid power performance, this equal BSPP male-to-male adaptor features a 60° cone seal for robust metal-to-metal sealing. Manufactured in mild steel and finished to high industrial standards, it's designed for consistent use in demanding hydraulic applications. The fitting supports a broad temperature range and conforms to recognised international specifications for assured compatibility and durability.
Key Features & Benefits
Material Strength: Durable mild steel construction ensures long-term reliability
Thread Configuration: Equal BSPP male threads for ease of installation and compatibility
Seal Type: 60° cone provides a secure metal-to-metal seal for leak-free performance
Standards Compliance: Conforms to ISO 8434-6 and BS 5200 for dimensional consistency
Temperature Performance: Maintains pressure integrity between -40°C and +120°C
Versatility: Suitable for hydraulic and pneumatic applications across various systems
Manufacturing Quality: Produced under ISO 9001-certified processes for assured quality control
Downloads
Burnett & Hillman Pressure Guide

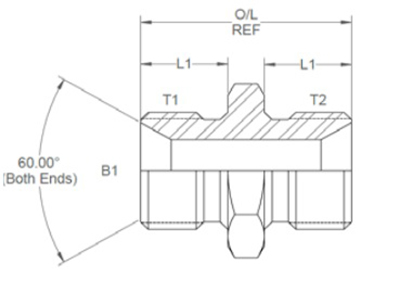

SKU
Product Code
T1 (")
T2 (")
B1 & B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
378931
1BP0202
1/8
1/8
0.137
0.44
0.44
1.08
14
378932
1BP0404
1/4
1/4
0.185
0.45
0.45
1.15
19
378933
1BP0606
3/8
3/8
0.312
0.52
0.52
1.26
22
378934
1BP0808
1/2
1/2
0.437
0.6
0.6
1.45
27
378935
1BP1010
5/8
5/8
0.562
0.7
0.7
1.68
30
378936
1BP1212
3/4
3/4
0.659
0.75
0.75
1.81
32
378937
1BP1616
1
1
0.875
0.8
0.8
1.95
41
378938
1BP2020
1 1/4
1 1/4
1.125
0.8
0.8
2
50
378939
1BP2424
1 1/2
1 1/2
1.312
0.85
0.85
2.15
55
378940
1BP2828
1 3/4
1 3/4
1.547
1
1
2.5
70
378941
1BP3232
2
2
1.812
1
1
2.5
70
378942
1BP4040
2 1/2
2 1/2
2.37
1
1
2.62
3.25"
378943
1BP4848
3
3
2.75
1
1
2.62
95
378944
1BP6464
4
4
3.75
1
1
2.62
4.75"
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
