Thread Type: BSPP (British Standard Parallel Pipe)
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on steel counterparts with lightly oiled threads
Description
Engineered for precision and durability, this BSPP male-to-male adaptor features a 60° cone seal to DIN 3852 Form A, making it suitable for applications requiring high-integrity metal-to-metal sealing. Crafted from mild steel and manufactured to stringent standards, it ensures reliability in hydraulic and pneumatic installations where equal BSPP male ends are required.
Key Features & Benefits
Material Strength: Mild steel construction ensures long-lasting durability
Thread Configuration: Equal BSPP male threads for easy integration
Seal Type: DIN 3852 Form A 60° cone offers reliable metal-to-metal sealing
Standards Compliance: Manufactured to DIN 3852 specifications
Temperature Performance: Performs effectively from -40°C to +120°C with defined pressure stability
System Compatibility: Suitable for high-repetition hydraulic and pneumatic use
Manufacturing Quality: ISO 9001 certified for consistent production quality
Downloads
Burnett & Hillman Pressure Guide

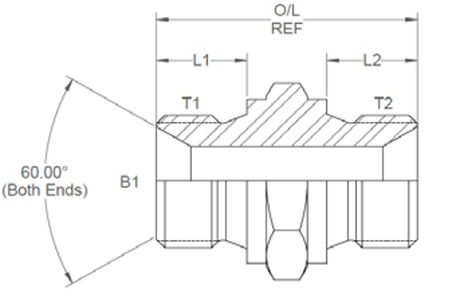

SKU
Product Code
T1 (")
T2 (")
B1 & B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
378984
1BPA0202
1/8
1/8
0.315
0.315
0.315
0.943
14
378986
1BPA0404
1/4
1/4
0.185
0.473
0.473
1.354
19
378989
1BPA0606
3/8
3/8
0.312
0.473
0.473
1.362
22
378991
1BPA0808
1/2
1/2
0.437
0.552
0.552
1.59
27
378994
1BPA1212
3/4
3/4
0.659
0.63
0.63
1.806
32
378996
1BPA1616
1
1
0.875
0.709
0.709
2.004
41
378999
1BPA2020
1 1/4
1 1/4
1.125
0.788
0.788
2.12
50
379001
1BPA2424
1 1/2
1 1/2
1.312
0.866
0.866
2.418
55
379003
1BPA3232
2
2
1.812
0.945
0.945
2.666
70
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
