Thread Standard: BSPP threads compatible with ISO 8434-6 / BS 5200
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads; for reference only
Description

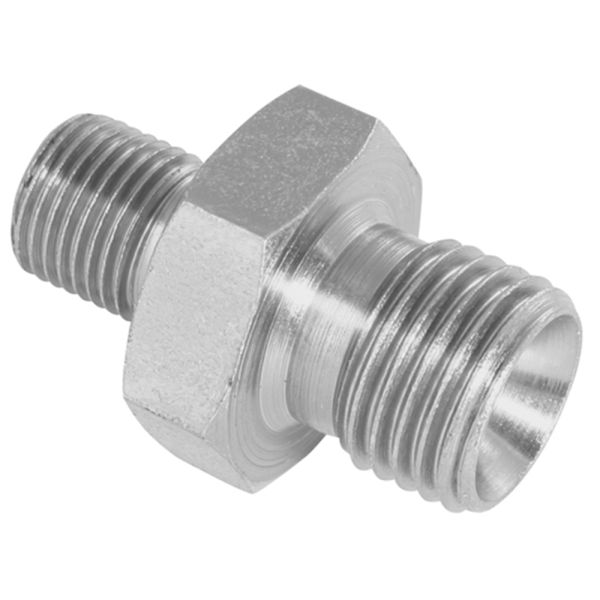

This equal BSPP male-to-male adaptor, built to Burnett & Hillman’s 174 Spec, features a 60° cone seal for secure metal-to-metal sealing. Designed for use in hydraulic and pneumatic systems, it delivers robust and reliable performance under demanding conditions. Manufactured from mild steel, this fitting is produced to exacting standards for assured compatibility and long-term durability.
Key Faetures & Benefits
Material Strength: Durable mild steel construction for high-pressure applications
Thread Configuration: Equal BSPP male-to-male for straightforward system connections
Seal Type: 60° cone ensures a reliable leak-free seal
Specification Standard: Built to 174 Spec for assured compatibility
Temperature Performance: Operates effectively from -40°C to +120°C with defined pressure thresholds
System Versatility: Suitable for hydraulic and pneumatic system installations
Quality Manufacturing: Produced to ISO 9001 standards for consistent reliability
Downloads
Burnett & Hillman Pressure Guide

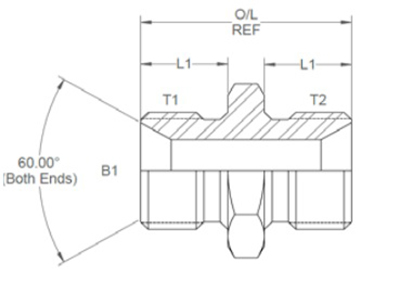

SKU
Product Code
T1 & T2 (")
B1 & B2 (")
L1 & L2 (")
O/L (")
A/F (mm)
379023
00114
1/4
0.137
0.44
1.08
14
379026
00120
3/8
0.185
0.48
1.21
19
379029
00125
1/2
0.437
0.64
1.645
27
379032
00115
3/4
0.659
0.74
1.928
32
379034
00118
1
0.875
0.965
2.503
41
379036
00109
1 1/4
1.125
0.97
2.66
50
379039
00111
1 1/2
1.312
1.07
3.03
55
379041
00113
2
1.812
1.07
3.28
70
