Sizes Available: 9/16" x 1 1/16" - 1 7/16" x 1 11/16"
Material: Mild Steel
Seal Type: Flat face with O-ring for leak-free sealing
Thread Type: ORFS (O-Ring Face Seal) male x ORFS swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For use with lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified manufacturing
Description

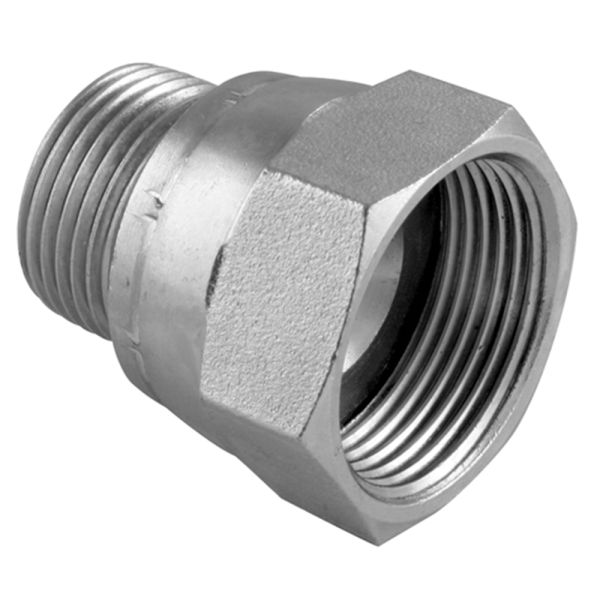

This ORFS adaptor features a male thread and a swivel female connection, both using an O-ring face seal for secure, leak-free performance. The swivel female end allows for easy assembly and hose alignment, making it ideal for use in high-pressure hydraulic systems requiring flat face sealing. Manufactured in mild steel to BS EN 10277 standards, this fitting provides a durable and corrosion-resistant solution.
Key Features & Benefits
Flat Face Sealing: O-ring face design ensures reliable, leak-free connection
Swivel Female Design: Prevents hose twisting and simplifies installation
Durable Material: Mild steel construction for strength and longevity
Precision Fit: Threads and sealing surfaces machined to BS EN 10277 standards
Versatile Compatibility: Suitable for ORFS hydraulic systems across various industries
Leak Prevention: O-ring provides positive seal even under vibration
Quality Controlled: ISO 9001-certified production for consistent quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

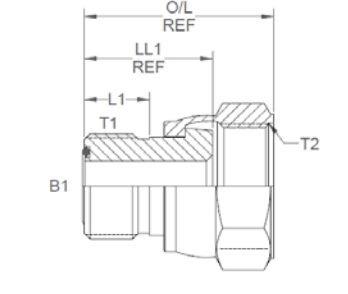

Male T1 (")
Female T2 (")
B1 (")
L1 (")
LL1 (")
O/L (")
A/F (")
381347
9015-04-06AS
9/16
11/16
0.172
0.386
0.77
1.11
0.812
381348
9015-04-12AS
9/16
13/16
0.172
0.386
0.98
1.51
1.375
381349
9015-06-08AS
11/16
13/16
0.264
0.441
0.88
1.31
0.938
381350
9015-06-12AS
11/16
1 3/16
0.264
0.441
1.03
1.54
1.375
381351
9015-08-10AS
13/16
1
0.378
0.504
1.01
1.48
1.125
381352
9015-10-12AS
1 3/16
1
0.484
0.61
1.16
1.73
1.375
381353
9015-12-16AS
1 3/16
1 7/16
0.609
0.67
1.3
1.88
1.625
381354
9015-16-20AS
1 7/16
1 11/16
0.811
0.689
1.514
2.05
1.875
