JIC swivel female: 37° cone for metal-to-metal sealing
Thread Type: Metric male (1.5mm pitch) x JIC (Joint Industry Council) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified production
Description

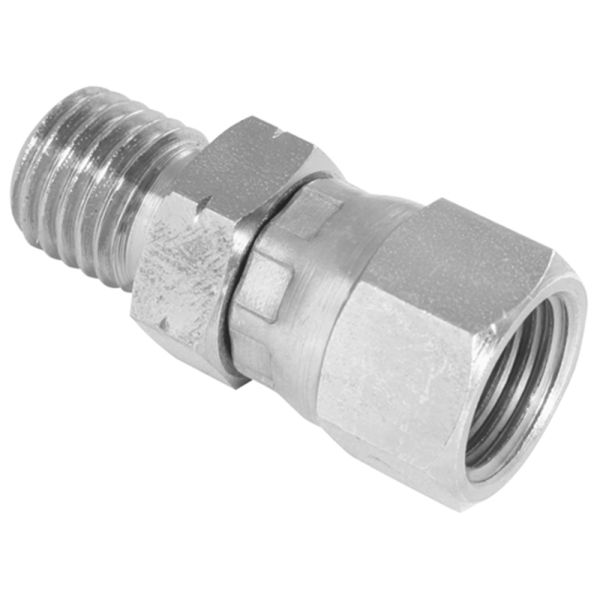

This hydraulic adaptor connects a metric male thread with a 1.5mm pitch to a JIC swivel female thread with a 37° cone. The metal-to-metal seal provided by the JIC cone ensures a strong, leak-free connection, while the swivel female end allows easy hose alignment during installation. Manufactured from high-grade mild steel to BS EN 10277 standards, this fitting delivers durability, precision, and compatibility across metric and JIC hydraulic systems.
Key Features & Benefits
Mixed Thread Compatibility: Metric male 1.5mm pitch x JIC swivel female
Secure Sealing: 37° cone on JIC end provides leak-free performance
Swivel Function: Prevents the hose twisting and eases installation
Robust Material: Mild steel construction for strength and longevity
Accurate Machining: Threads and sealing surfaces meet BS EN 10277 standards
Versatile Use: Suitable for hydraulic and pneumatic applications
Certified Quality: Produced under ISO 9001 quality assurance
Downloads
Burnett & Hillman Pressure Guide

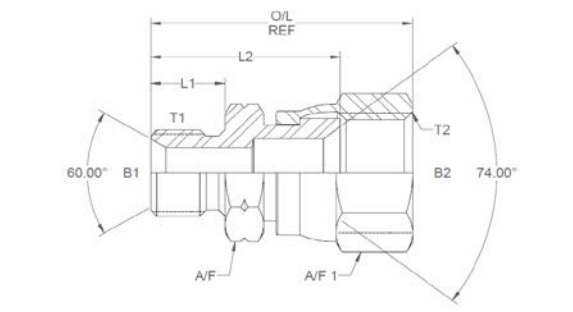

SKU
Product code
Male T1 (mm)
Female T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1 (")
380892
01625
12
1/2
0.197
0.197
0.49
1.069
1.45
17
0.625
380893
01626
14
9/16
0.296
0.296
0.49
1.1
1.5
19
0.687
380894
01627
16
9/16
0.375
0.296
0.52
1.15
1.54
22
0.687
380895
01628
16
3/4
0.375
0.375
0.52
1.278
1.72
22
0.875
380896
01631
18
3/4
0.437
0.39
0.52
1.278
1.72
22
0.875
