Temperature Range: -40°C to +120°C with no pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description
This straight adaptor features a metric male thread and a swivel metric female thread, both with a 1.5mm pitch. The swivel design simplifies installation and reduces the risk of hose twisting, making it ideal for use in hydraulic systems where alignment and flexibility are important. Manufactured from mild steel to BS EN 10277, this fitting ensures durability and compatibility in high-pressure applications.
Key Features & Benefits
Metric-to-Metric Compatibility: Designed for systems using 1.5mm pitch metric threads
Swivel Female End: Allows easy alignment during assembly
Durable Construction: Manufactured from high-quality mild steel
Reliable Performance: Suitable for hydraulic and pneumatic applications
Precision Threading: Manufactured to BS EN 10277 for secure and accurate fit
Leak-Free Seal: Ensures reliable operation under pressure
Quality Manufacturing: Produced under ISO 9001-certified standards
Downloads
Burnett & Hillman Pressure Guide

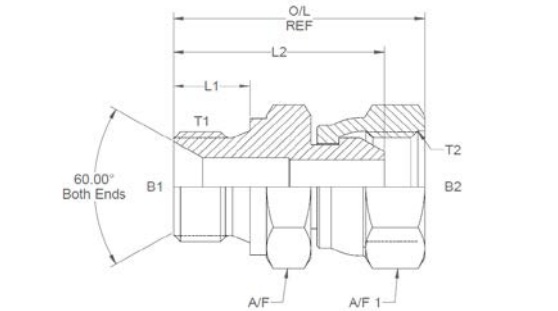

SKU
Product Code
Male T1 (mm)
Female T2 (mm)
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1 (mm)
379795
2M1414
M14 x 1.5
M14 x 1.5
0.296
0.203
0.49
1.31
1.47
19
19
379796
2M1616
M16 x 1.5
M16 x 1.5
0.375
0.281
0.52
1.33
1.54
22
22
379797
2M1618
M16 x 1.5
M18 x 1.5
0.312
0.343
0.52
1.382
1.59
22
24
379798
2M1818
M18 x 1.5
M18 x 1.5
0.375
0.343
0.52
1.382
1.59
24
24
379799
2M2020
M20 x 1.5
M20 x 1.5
0.5
0.281
0.52
1.382
1.59
27
27
379800
2M2022
M20 x 1.5
M22 x 1.5
0.5
0.437
0.52
1.392
1.61
27
27
379801
2M2218
M22 x 1.5
M18 x 1.5
0.562
0.343
0.54
1.402
1.59
27
24
379802
2M2220
M22 x 1.5
M20 x 1.5
0.562
0.281
0.54
1.402
1.62
27
27
379803
2M2222
M22 x 1.5
M22 x 1.5
0.562
0.437
0.54
1.442
1.66
27
27
