Thread Type: Metric swivel female x Metric swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

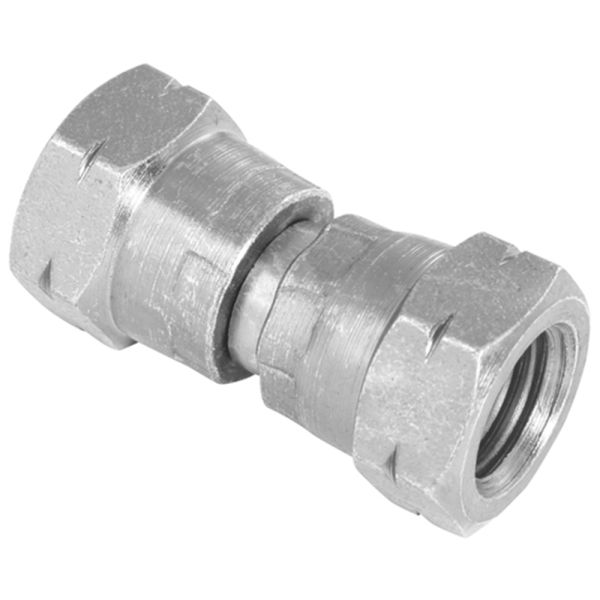

This metric double swivel female adaptor with a 1.5mm thread pitch is designed for connecting two metric male hydraulic fittings. Featuring swivel female threads on both ends, it enables easy installation without twisting hoses. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it delivers a strong, leak-free connection suitable for high-pressure hydraulic and pneumatic applications.
Standard Compliance: Manufactured to BS EN 10277 for dimensional precision
Versatile Application: Suitable for hydraulic and pneumatic systems using metric threads
Quality Manufacturing: ISO 9001-certified processes ensure consistent product reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (mm)
T2 (mm)
B1 (")
B2 (")
L1 (")
O/L (")
A/F (mm)
A/F1 (mm)
379853
01775
M12 x 1.5
M12 x 1.5
0.125
0.125
1.1
1.517
0.687"
0.687"
379854
01785
M12 x 1.5
M14 x 1.5
0.125
0.203
1.17
1.5
0.687"
0.71"
379855
01776
M14 x 1.5
M14 x 1.5
0.203
0.203
1.24
1.538
19
19
379856
01777
M16 x 1.5
M16 x 1.5
0.281
0.281
1.182
1.614
22
22
379857
01782
M16 x 1.5
M18 x 1.5
0.281
0.343
1.233
1.63
22
24
379858
01778
M18 x 1.5
M18 x 1.5
0.343
0.343
1.285
1.65
24
24
379859
01783
M18 x 1.5
M20 x 1.5
0.343
0.343
1.29
1.66
24
27
379860
01779
M18 x 1.5
M22 x 1.5
0.343
0.437
1.294
1.68
24
27
379861
01780
M20 x 1.5
M20 x 1.5
0.343
0.343
1.29
1.66
27
27
379862
01784
M20 x 1.5
M22 x 1.5
0.281
0.437
1.294
1.69
27
27
379863
01781
M22 x 1.5
M22 x 1.5
0.437
0.437
1.305
1.74
27
27
