Metric swivel female: Designed for secure connection with 1.5mm pitch
Thread Type: JIC (Joint Industry Council) male x Metric swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: ISO 9001-certified production
Description

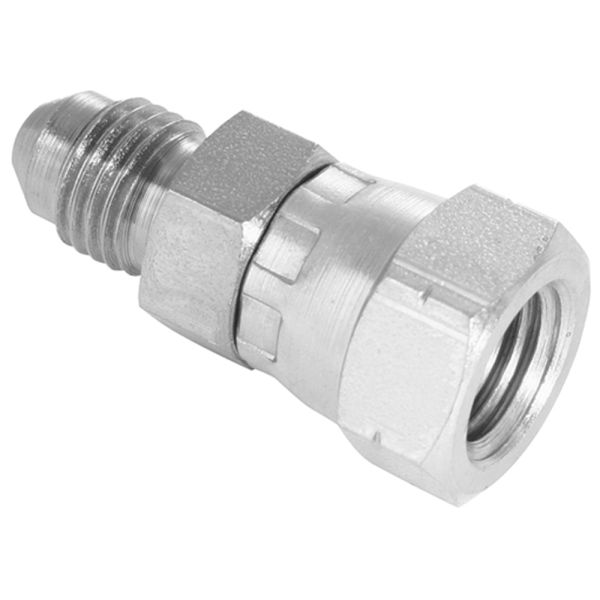

This adaptor connects a JIC male thread with a 37° cone to a metric swivel female thread with a 1.5mm pitch, providing reliable metal-to-metal sealing on the JIC side. The swivel female end allows for easy hose alignment and assembly, reducing installation time and preventing hose twist. Manufactured from high-quality mild steel to BS EN 10277 standards, it ensures strength, precision, and compatibility in hydraulic and pneumatic systems requiring mixed JIC and metric connections.
Key Features & Benefits
Mixed Thread Adaptability: JIC male x Metric swivel female (1.5mm pitch)
Metal-to-Metal Seal: 37° cone on JIC end for leak-free performance
Swivel Female End: Allows easier installation and prevents hose twisting
Strong Construction: High-quality mild steel for durability under pressure
Precision Engineering: Threads machined to BS EN 10277 standards
Versatile Use: Ideal for hydraulic systems with mixed JIC and metric fittings
Quality Controlled: ISO 9001-certified manufacturing ensures consistency
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

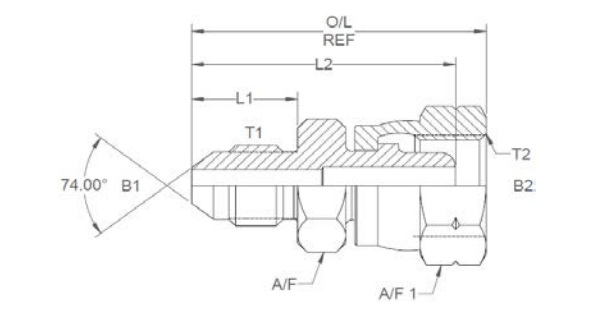

Male T1 (")
Female T2 (mm)
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (")
A/F1 (mm)
380854
01664
7/16
M12 x 1.5
0.172
0.125
0.55
1.3
1.48
0.562
17
380855
01651
9/16
M14 x 1.5
0.297
0.203
0.556
1.376
1.57
0.625
19
380856
01652
9/16
M16 x 1.5
0.297
0.281
0.556
1.397
1.63
19mm
19
380857
01653
9/16
M18 x 1.5
0.297
0.297
0.556
1.448
1.64
19mm
22
380858
01654
9/16
M20 x 1.5
0.297
0.281
0.556
1.448
1.64
0.812
24
380859
01655
9/16
M22 x 1.5
0.297
0.297
0.556
1.458
1.69
22mm
27
380860
01656
3/4
M16 x 1.5
0.391
0.281
0.657
1.508
1.74
0.812
22
380861
01657
3/4
M18 x 1.5
0.391
0.343
0.657
1.559
1.74
0.812
24
380862
01659
3/4
M22 x 1.5
0.391
0.391
0.657
1.559
1.8
22mm
27
380863
01661
7/8
M18 x 1.5
0.484
0.343
0.758
1.66
1.85
1
24
380864
01662
7/8
M20 x 1.5
0.484
0.281
0.758
1.66
1.86
1
27
380865
01663
7/8
M22 x 1.5
0.484
0.437
0.758
1.67
1.92
1
27
