Thread Type: JIC (Joint Industry Council) male x JIC swivel female
Seal Type: 37° cone on both male and female ends for metal-to-metal sealing
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on use with lightly oiled steel threads
Quality Assurance: Manufactured under ISO 9001-certified processes
Description

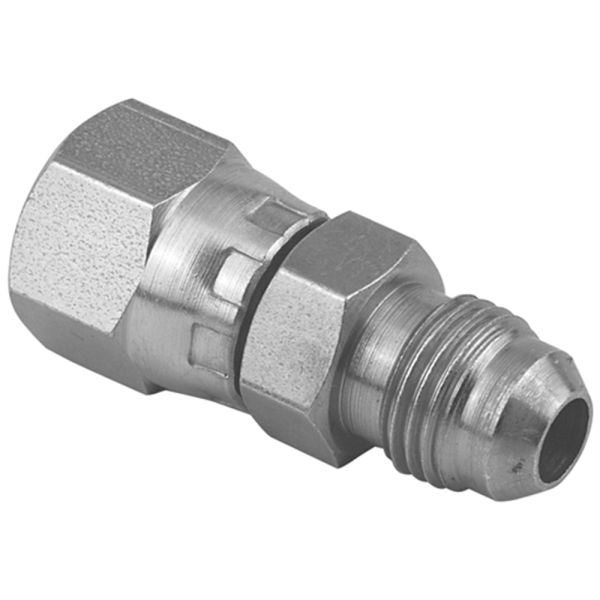

This JIC male x JIC swivel female adaptor features 37° cone sealing on both ends, ensuring a secure and reliable metal-to-metal seal for high-pressure hydraulic applications. The swivel female design allows easy hose alignment and reduces the risk of twisting during installation. Manufactured from mild steel to BS EN 10277 standards, it offers strength, precision, and long-term durability in demanding environments.
Key Features & Benefits
Dual JIC Connections: JIC male x JIC swivel female, both with 37° cones
Reliable Sealing: 37° cone provides robust metal-to-metal seal
Swivel Female End: Allows flexible installation and prevents hose stress
Durable Construction: Made from high-quality mild steel
Precision Manufactured: Threads and cones comply with BS EN 10277 standards
Versatile Use: Ideal for hydraulic and fluid power systems in industrial or mobile settings
Quality Controlled: Produced under ISO 9001-certified quality management
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

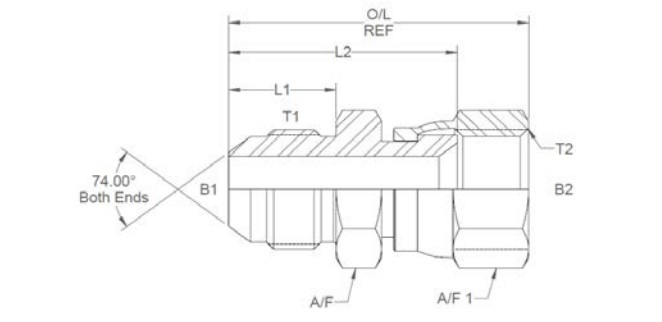

Male T1 (")
Female T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (")
A/F1 (")
380866
2J0707
7/16
7/16
0.172
0.172
0.55
1.083
1.45
0.562
0.562
380867
2J0709
7/16
9/16
0.172
0.172
0.55
1.16
1.56
0.562
0.687
380868
2J0712
7/16
3/4
0.172
0.39
0.55
1.313
1.75
0.812
0.875
380869
2J0714
7/16
7/8
0.172
0.5
0.55
1.36
1.86
0.812
1
380870
2J0808
1/2
1/2
0.234
0.203
0.55
1.129
1.51
0.562
.625
380871
2J0809
1/2
9/16
0.234
0.234
0.55
1.16
1.58
0.562
0.687
380872
2J0907
9/16
7/16
0.297
0.176
0.556
1.139
1.5
0.625
0.562
380873
2J0907
9/16
1/2
0.297
0.203
0.556
1.155
1.55
0.625
0.625
380874
2J0909
9/16
9/16
0.297
0.297
0.556
1.186
1.6
0.625
0.687
380875
2J0912
9/16
3/4
0.297
0.39
0.556
1.314
1.75
0.812
0.875
380876
2J0914
9/16
7/8
0.297
0.5
0.556
1.366
1.86
0.812
1
380877
2J1209
3/4
9/16
0.391
0.296
0.657
1.317
1.7
22mm
0.687
380878
2J1212
3/4
3/4
0.391
0.391
0.657
1.455
1.9
0.812
0.875
380879
2J1214
3/4
7/8
0.391
0.5
0.657
1.502
2
0.812
1
380880
2J1217
3/4
1 1/16
0.391
0.593
0.657
1.624
2.22
27mm
1.25
380881
2J1412
7/8
3/4
0.484
0.39
0.758
1.606
2.03
1
0.875
380882
2J1414
7/8
7/8
0.484
0.484
0.758
1.613
2.12
1
1
380883
2J1417
7/8
1 1/16
0.484
0.593
0.758
1.715
2.3
27mm
1.25
380884
2J1712
1 1/16
3/4
0.609
0.39
0.864
1.762
2.19
1.125
0.875
380885
2J1714
1 1/16
7/8
0.609
0.5
0.864
1.809
2.32
1.125
1
380886
2J1717
1 1/16
1 1/16
0.609
0.609
0.864
1.851
2.43
1.125
1.25
380887
2J1721
1 1/16
1 5/16
0.609
0.812
0.864
1.884
2.48
1.375
1.5
380888
2J1919
1 3/16
1 3/16
0.719
0.719
0.89
1.857
2.46
1.375
1.375
380889
2J2126
1 5/16
1 5/8
0.844
1.075
0.911
2.002
2.65
1.75
50mm
380890
2J2626
1 5/8
1 5/8
1.078
1.078
0.958
2.009
2.66
46mm
50mm
380891
2J2630
1 5/8
1 7/8
1.078
1.25
0.958
2.228
2.95
50mm
55mm
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
