Thread Type: JIC (Joint Industry Council) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

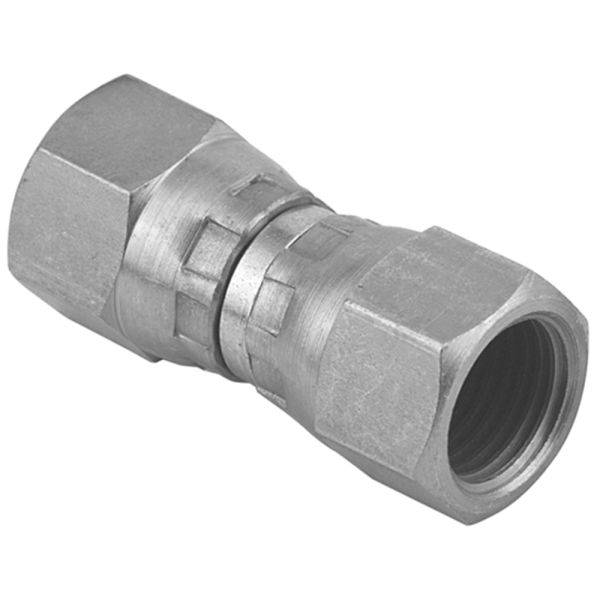

This JIC swivel female adaptor with a 37° cone sealing face is designed for secure hydraulic connections with JIC male fittings. The swivel design allows for easy installation and disassembly without twisting hoses, making it ideal for high-pressure hydraulic and pneumatic systems. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures durable, leak-proof performance.
Key Features & Benefits
Durable Construction: Made from robust mild steel for long service life
Thread Type: JIC swivel female for compatibility with JIC male fittings
Swivel Design: Enables easy installation without hose twisting
Standard Compliance: Manufactured to BS EN 10277 for precise threading and fit
Versatile Application: Suitable for high-pressure hydraulic and pneumatic systems
Quality Manufacturing: ISO 9001-certified production ensures consistent reliability
Downloads
Burnett & Hillman Pressure Guide

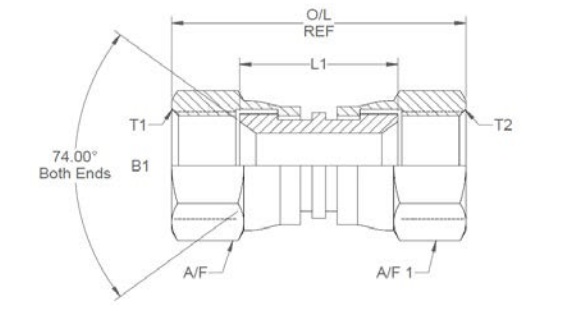

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
O/L (")
A/F (")
A/F (")
380916
3J0707
7/16
7/16
0.176
0.176
0.726
1.45
0.562
0.562
380917
3J0709
7/16
9/16
0.176
0.296
0.773
1.54
0.562
0.687
380918
3J0712
7/16
3/4
0.176
0.39
0.901
1.7
0.562
0.875
380919
3J0808
1/2
1/2
0.203
0.203
0.758
1.53
0.625
0.625
380920
3J0809
1/2
9/16
0.203
0.296
0.789
1.58
0.625
0.687
380921
3J0909
9/16
9/16
0.296
0.296
0.82
1.6
0.687
0.687
380922
3J0912
9/16
3/4
0.296
0.39
0.948
1.8
0.687
0.875
380923
3J1212
3/4
3/4
0.39
0.39
1.076
1.97
0.875
0.875
380924
3J1409
7/8
9/16
0.296
0.5
0.995
1.89
0.687
1
380925
3J1412
7/8
3/4
0.39
0.5
1.123
2.06
0.875
1
380926
3J1414
7/8
7/8
0.5
0.5
1.17
2.18
1
1
380927
3J1717
1 1/16
1 1/16
0.593
0.593
1.254
2.4
1.25
1.25
380928
3J1721
1 1/16
1 5/16
0.593
0.812
1.287
2.48
1.25
1.5
380929
3J1919
1 3/16
1 3/16
0.75
0.75
1.204
2.42
1.375
1.375
380930
3J2121
1 5/16
1 5/16
0.812
0.812
1.32
2.53
1.5
1.5
380931
3J2626
1 5/8
1 5/8
1.075
1.075
1.382
2.7
50
50
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
