Seal Type: 60° cone on BSPP female for metal-to-metal sealing
Thread Type: BSPT (British Standard Pipe Tapered) male x BSPP (British Standard Pipe Parallel) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C with no pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for use with lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This adaptor connects a BSPT male thread to a BSPP swivel female thread with a 60° cone seat, offering a secure and reliable metal-to-metal seal. The swivel female design allows for easier installation and hose alignment, especially in confined spaces. Manufactured by Burnett & Hillman in high-quality mild steel, it complies with BS EN 10277 for precision and performance in hydraulic systems.
Key Features & Benefits
Mixed Thread Compatibility: BSPT male x BSPP swivel female
Secure Metal Seal: 60° cone provides reliable sealing under pressure
Swivel Functionality: Allows hose adjustment during installation
High-Quality Material: Robust mild steel for strength and corrosion resistance
Precision Machining: Threads and sealing surfaces manufactured to BS EN 10277
Versatile Application: Ideal for hydraulic and pneumatic systems with mixed British thread types
Consistent Quality: ISO 9001-certified manufacturing ensures repeatable performance
Downloads
Burnett & Hillman Pressure Guide

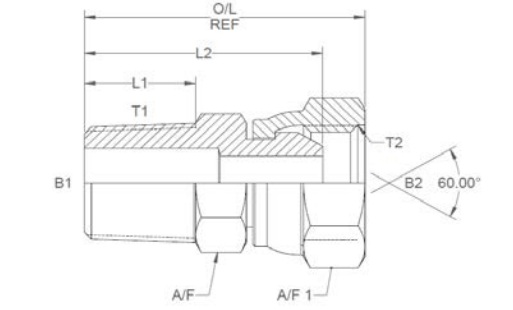

SKU
Product Code
Male T1 (")
Female T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1 (mm)
379764
01875
1/8
1/8
0.187
0.125
0.41
1.035
1.24
14
14
379765
01876
1/4
1/4
0.25
0.172
0.58
1.3
1.52
0.562"
19
379766
01877
3/8
3/8
0.375
0.271
0.59
1.422
1.68
0.687"
22
379767
01885
3/8
1/2
0.375
0.375
0.59
1.438
1.74
22
27
379768
01884
1/2
3/8
0.5
0.271
0.76
1.602
1.84
22
22
379769
01878
1/2
1/2
0.5
0.375
0.76
1.628
1.94
22
27
379770
01879
5/8
5/8
0.593
0.5
0.87
1.72
2.14
27
30
379771
01880
3/4
1/2
0.687
0.375
0.77
1.71
2
27
27
379772
01881
3/4
3/4
0.687
0.6
0.77
1.65
2.07
30
32
379773
01887
3/4
1
0.687
0.687
0.87
1.838
2.31
1.48"
1.48"
379774
01882
1
3/4
0.875
0.6
0.99
1.99
2.4
1.375"
32
379775
01883
1
1
0.875
0.797
0.99
2.038
2.48
1.5
41
379776
01889
1 1/4
1 1/4
1.203
1.014
1
2.11
2.54
1.75
50
379777
01888
1 1/2
1 1/2
1.312
1.201
1.17
2.47
2.978
50
55
379778
01886
2
2
1.812
1.703
1.18
2.542
3.22
65
70
