Thread Type: BSPP (British Standard Pipe Parallel) male x JIC (Joint Industry Council) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C with no pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

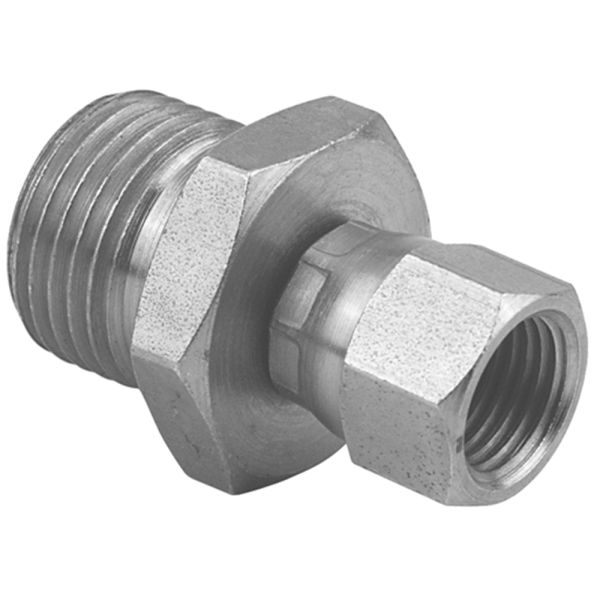

This mixed-thread adaptor features a BSPP male thread with a 60° cone and a JIC swivel female thread with a 37° cone, offering reliable metal-to-metal sealing at both ends. Ideal for applications requiring compatibility between BSPP and JIC hydraulic systems, the swivel female end allows easy alignment and installation. Manufactured from durable mild steel to BS EN 10277, this fitting is built for strength, leak prevention, and long service life in demanding environments.
Key Features & Benefits
Mixed Thread Configuration: BSPP male x JIC swivel female
Dual Cone Sealing: 60° cone (BSPP) and 37° cone (JIC) provide secure, leak-free connections
Swivel Functionality: Reduces installation time and avoids hose twisting
Robust Material: Mild steel construction for durability under pressure
Precision Machining: Threads and cones comply with BS EN 10277
Ideal for Hydraulic Systems: Ensures compatibility across British and American thread types
Certified Quality: ISO 9001-certified manufacturing process
Downloads
Burnett & Hillman Pressure Guide

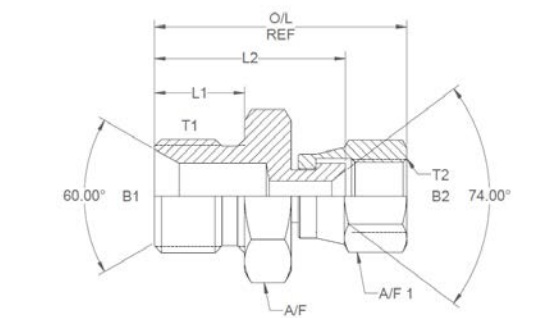

SKU
Product Code
Male T1 (")
Female T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1 (")
380803
2BJ0207
1/8
7/16
0.137
0.176
0.45
0.963
1.33
14
0.562
380804
2BJ0407
1/4
7/16
0.185
0.176
0.45
1.003
1.38
19
0.562
380805
2BJ0408
1/4
1/2
0.185
0.203
0.45
1.059
1.45
19
0.625
380806
2BJ0409
1/4
9/16
0.185
0.185
0.45
1.06
1.46
19
0.687
380807
2BJ0412
1/4
3/4
0.185
0.39
0.45
1.218
1.67
22
0.875
380808
2BJ0607
3/8
7/16
0.312
0.176
0.52
1.103
1.475
22
0.562
380809
2BJ0608
3/8
1/2
0.312
0.203
0.52
1.099
1.495
22
0.625
380810
2BJ0609
3/8
9/16
0.312
0.296
0.52
1.13
1.51
22
0.687
380811
2BJ0612
3/8
3/4
0.312
0.312
0.52
1.308
1.75
22
0.875
380812
2BJ0614
3/8
7/8
0.312
0.484
0.52
1.355
1.86
22
1
380813
2BJ0807
1/2
7/16
0.437
0.176
0.6
1.188
1.54
27
0.562
380814
2BJ0808
1/2
1/2
0.437
0.203
0.6
1.209
1.61
27
0.625
380815
2BJ0809
1/2
9/16
0.437
0.296
0.6
1.255
1.64
27
0.687
380816
2BJ0812
1/2
3/4
0.437
0.39
0.6
1.448
1.86
27
0.875
380817
2BJ0814
1/2
7/8
0.437
0.437
0.6
1.495
2.02
27
1
380818
2BJ0817
1/2
1 1/16
0.437
0.593
0.6
1.527
2.1
27
1.25
380819
2BJ1012
5/8
3/4
0.593
0.39
0.7
1.508
1.95
30
0.875
380820
2BJ1014
5/8
7/8
0.593
0.5
0.7
1.565
2.08
30
1
380821
2BJ1017
5/8
1 1/16
0.593
0.593
0.7
1.627
2.3
1.125"
1.25
380822
2BJ1212
3/4
3/4
0.659
0.39
0.75
1.588
2.05
32
0.875
380823
2BJ1214
3/4
7/8
0.659
0.5
0.75
1.635
2.13
32
1
380824
2BJ1217
3/4
1 1/16
0.659
0.593
0.75
1.677
2.24
32
1.25
380825
2BJ1219
3/4
1 3/16
0.659
0.75
0.75
1.722
2.32
32
1.375
380826
2BJ1221
3/4
1 5/16
0.659
0.812
17.5
1.81
2.41
1.375"
1.5
380827
2BJ1617
1
1 1/16
0.875
0.593
0.8
1.757
2.33
41
1.25
380828
2BJ1619
1
1 3/16
0.875
0.75
0.8
1.772
2.36
41
1.375
380829
2BJ1621
1
1 5/16
0.875
0.812
0.8
1.81
2.42
41
1.5
380830
2BJ1626
1
1 5/8
0.875
1.075
0.8
1.851
2.53
1.75"
50mm
380831
2BJ2021
1 1/4
1 5/16
1.125
0.812
0.8
1.82
2.43
50
1.5
380832
2BJ2026
1 1/4
1 5/8
1.125
1.075
0.8
1.891
2.59
50
50mm
380833
2BJ3230
2
1 7/8
1.812
1.25
1
2.25
2.92
70
55mm
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
