Seal Type: 60° cone sealing on both male and female ends
Temperature Range: -40°C to +120°C with no pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This adaptor features a BSPP male thread manufactured to DIN 3852 Form A with a 60° cone, and a swivel BSPP female connection with matching 60° cone sealing. Designed for use in hydraulic and pneumatic systems, the swivel function allows for straightforward installation and alignment without twisting hoses. Manufactured in high-quality mild steel, the component combines dimensional accuracy and robust performance.
Key Features & Benefits
Mixed Standard Compatibility: DIN 3852 Form A male x BS EN 10277 swivel female
Strong Metal-to-Metal Seal: 60° cone ensures reliable sealing at both ends
Swivel Functionality: Simplifies assembly and prevents hose damage
Durable Mild Steel Construction: Suitable for demanding hydraulic applications
Precision Manufactured: Threads and cones machined for tight tolerances and repeatable fit
Standard Compliance: Ensures performance in mixed BSPP connection systems
Quality Assured: ISO 9001-certified production guarantees consistency
Downloads
Burnett & Hillman Pressure Guide

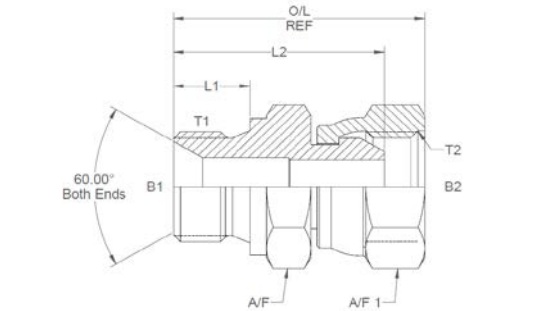

SKU
Product Code
Male T1 (")
Female T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1 (mm)
379736
61400
1/8
1/8
0.137
0.125
0.315
0.919
1.11
14
14
379737
61402
1/8
3/8
0.187
0.187
0.315
1.136
1.41
19
22
379738
61403
1/4
1/8
0.25
0.125
0.473
1.152
1.419
19
14
379739
61404
1/4
1/4
0.185
0.172
0.473
1.212
1.43
19
19
379740
61405
1/4
3/4
0.185
0.6
0.473
1.356
1.76
30
32
379741
61406
1/4
1/2
0.185
0.375
0.473
1.36
1.66
24
27
379742
61410
3/8
3/8
0.312
0.271
0.473
1.303
1.55
22
22
379743
61411
3/8
1/2
0.375
0.39
0.473
1.349
1.7
22
27
379744
61417
1/2
1/2
0.437
0.39
0.552
1.518
1.83
27
27
379745
61419
1/2
3/4
0.437
0.6
0.552
1.47
1.87
30
32
379746
61420
1/2
1
0.5
0.843
0.552
1.598
2.05
1.5"
41
379747
61429
3/4
1/2
0.718
0.39
0.63
1.586
1.88
32
27
379748
61432
3/4
1
0.659
0.797
0.63
1.635
2.08
1.5"
41
379749
61433
3/4
1 1/4
0.659
1.014
0.63
1.758
2.2
1.75"
50
379750
61434
1
1/2
0.875
0.39
0.709
1.705
2.04
41
27
379751
61436
1
3/4
0.875
0.6
0.709
1.677
2.08
41
32
379752
61437
1
1
0.875
0.797
0.709
1.725
2.18
41
41
379753
61438
1
1 1/4
0.875
1.014
0.709
1.857
2.3
50
50
379754
61439
1
1 1/2
0.875
1.312
0.709
1.987
2.5
50
55
379755
61443
1 1/4
1 1/4
1.125
1.014
0.788
1.916
2.36
50
50
379756
61444
1 1/4
1 1/2
1.125
1.201
0.788
2.056
2.57
50
55
379757
61445
1 1/4
2
-
-
-
-
-
-
-
379758
61448
1 1/2
1 1/2
1.312
1.312
0.866
2.184
2.7
55
55
379759
61449
1 1/2
2
-
-
-
-
-
-
-
