Thread Type: BSPP swivel female x JIC swivel female
BSPP end: 60° cone for metal-to-metal sealing
JIC end: 37° cone for metal-to-metal sealing
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on use with lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description
This swivel female adaptor connects BSPP and JIC threaded fittings using cone sealing profiles on both ends. Featuring a BSPP 60° cone and a JIC 37° cone, this adaptor allows flexible, leak-resistant connection between two different hydraulic thread systems. Manufactured from high-quality mild steel to BS EN 10277 standards by Burnett & Hillman, it’s designed for high-pressure hydraulic and pneumatic applications where mixed-thread connectivity is required.
Key Features & Benefits
Durable Construction: Made from strong mild steel for reliable long-term use
Mixed Thread Compatibility: BSPP 60° cone x JIC 37° cone for cross-standard applications
Swivel Design: Simplifies installation and prevents hose twisting
Precision Threading: Manufactured to BS EN 10277 for exact thread alignment
Quality Manufacturing: Produced under ISO 9001-certified processes for consistency and reliability
Versatile Use: Ideal for mixed hydraulic systems in industrial and automotive settings
Downloads
Burnett & Hillman Pressure Guide

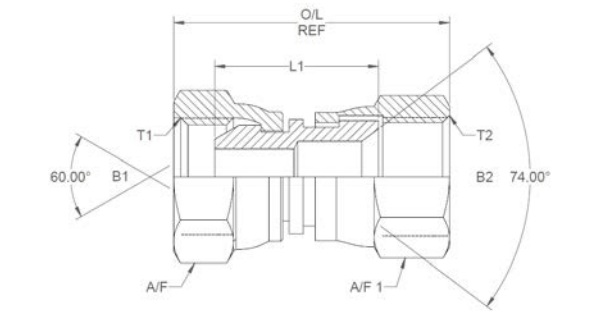

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
O/L (")
A/F
A/F1 (")
380897
3BJ0407
1/4
7/16
0.172
0.172
0.823
1.375
19mm
0.562
380898
3BJ0408
1/4
1/2
0.172
0.203
0.839
1.44
0.71"
0.625
380899
3BJ0409
1/4
9/16
0.172
0.296
0.87
1.45
19mm
0.687
380900
3BJ0607
3/8
7/16
0.176
0.176
0.925
1.56
22mm
0.562
380901
3BJ0608
3/8
1/2
0.203
0.203
0.941
1.61
0.82"
0.625
380902
3BJ0609
3/8
9/16
0.296
0.296
0.972
1.61
22mm
0.687
380903
3BJ0612
3/8
3/4
0.271
0.39
1.1
1.8
22mm
0.875
380904
3BJ0614
3/8
7/8
0.296
0.5
1.147
1.9
22mm
1
380905
3BJ0809
1/2
9/16
0.296
0.296
0.988
1.76
1.01"
0.687
380906
3BJ0812
1/2
3/4
0.375
0.375
1.116
1.84
27mm
0.875
380907
3BJ0814
1/2
7/8
0.375
0.5
1.163
1.94
27mm
1
380908
3BJ0817
1/2
1 1/16
0.39
0.593
1.205
2.07
27mm
1.25
380909
3BJ1014
5/8
7/8
0.5
0.5
1.135
2.05
1.1"
1
380910
3BJ1212
3/4
3/4
0.39
0.39
1.088
1.99
1.3"
0.875
380911
3BJ1217
3/4
1 1/16
0.593
0.593
1.177
2.15
32mm
1.25
380912
3BJ1221
3/4
1 3/16
0.593
0.75
1.122
2.2
1.3"
1.375
380913
3BJ1617
1
1 1/16
0.593
0.593
1.225
2.29
1.48"
1.25
380914
3BJ1621
1
1 5/16
0.797
0.797
1.258
2.3
41mm
1.5
380915
3BJ2026
1 1/4
1 5/8
1.047
1.047
1.351
2.45
50mm
50mm
