BSPP: male with 60° cone for metal-to-metal sealing
SAE: swivel female with integrated O-ring face seal
Thread Type: BSPP (British Standard Pipe Parallel) male x SAE (Society of Automotive Engineers) swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C with no pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Based on use with lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

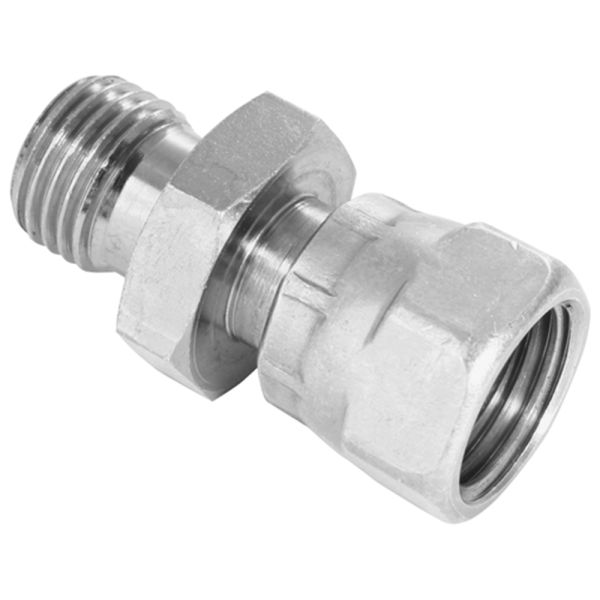

This adaptor features a BSPP male thread with a 60° cone and a swivel SAE female thread with an O-ring face seal. Designed for high-pressure hydraulic systems, it combines a reliable metal-to-metal seal on the BSPP side with a leak-proof O-ring seal on the SAE side. The swivel function allows for hassle-free hose orientation and installation. Manufactured from mild steel to BS EN 10277, this fitting offers durability and precision in cross-standard fluid power systems.
Key Features & Benefits
Cross-Compatible Design: Connects BSPP male to SAE swivel female
Dual Sealing: BSPP 60° cone and SAE O-ring face provide secure, leak-free connections
Swivel Female End: Allows easy hose alignment without rotation
High-Quality Steel: Manufactured to BS EN 10277 for strength and durability
Precision Engineering: Ensures tight and consistent thread engagement
Ideal for Mixed Systems: Supports integration between British and SAE standards
ISO Certified: Produced under ISO 9001 standards for manufacturing quality
Downloads
Burnett & Hillman Pressure Guide
SKU

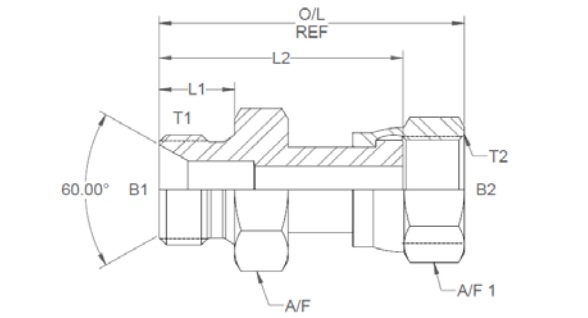

Product Code
Male T1 (")
Female T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1
379708
96400
1/4
9/16
0.185
0.185
0.433
1.26
1.6
19
0.687"
379709
96410
1/4
11/16
0.185
0.185
0.45
1.395
1.725
19
0.812"
379710
96420
3/8
9/16
0.312
0.185
0.472
1.363
1.69
22
0.687"
379711
96430
3/8
11/16
0.312
0.264
0.472
1.457
1.816
22
0.812"
379712
96440
3/8
13/16
0.312
0.312
0.52
1.66
2.11
22
24
379713
96450
1/2
13/16
0.437
0.358
0.551
1.771
2.205
27
24
379714
96460
1/2
1
0.437
0.437
0.551
1.906
2.42
27
1.125
379715
96470
3/4
1 3/16
0.659
0.54
0.63
2.13
2.7
32
1.375
379716
96480
3/4
1 7/16
0.659
0.783
0.63
2.212
2.8
1.5
41
379717
96490
1
1 7/16
0.875
0.783
0.748
2.328
2.91
41
41
379718
96500
1 1/4
1 11/16
1.125
1.024
0.787
2.369
2.89
50
50
