Seal Type: 60° cone sealing on both male and female ends
Thread Type: BSPP (British Standard Parallel Pipe) male x BSPP swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Values based on lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified manufacturing
Description

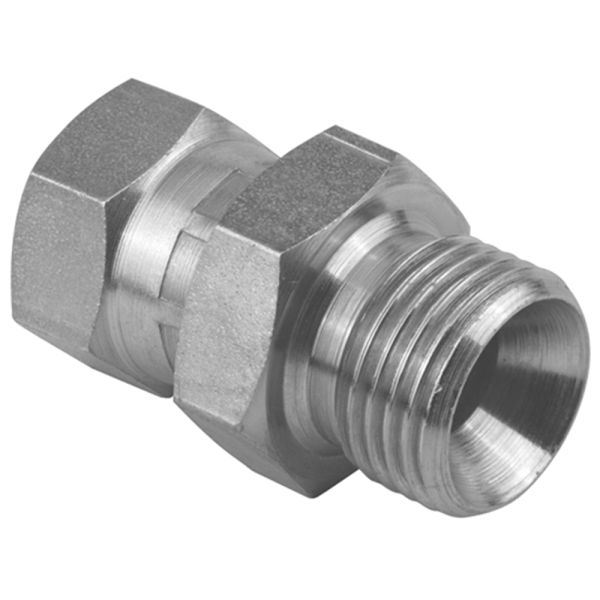

This BSPP adaptor features a 60° cone sealing face on both male and swivel female ends, enabling a secure metal-to-metal seal for hydraulic connections. The swivel female design simplifies installation by preventing hose twisting during assembly. Manufactured by Burnett & Hillman in high-grade mild steel to BS EN 10277 standards, this fitting is suitable for high-pressure hydraulic and pneumatic systems using BSPP threads.
Key Features & Benefits
Durable Construction: Manufactured from robust mild steel for long-lasting use
Thread Type: BSPP male x BSPP swivel female for system compatibility
Dual 60° Cone Seal: Reliable metal-to-metal sealing on both ends
Swivel Design: Enables hassle-free installation and alignment
Precision Machining: Compliant with BS EN 10277 for consistent fit and performance
Versatile Use: Ideal for hydraulic and pneumatic systems requiring BSPP connections
Quality Controlled: Produced under ISO 9001-certified manufacturing for assurance of quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

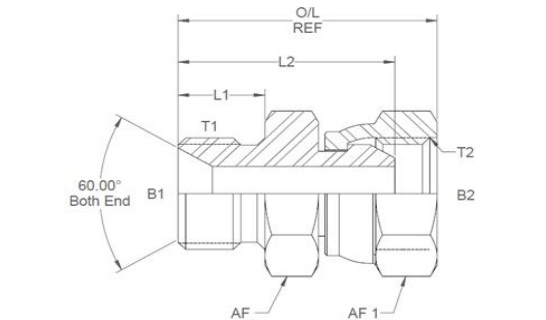

Male T1 (")
Female T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F1 (mm)
379656
2B0202
1/8
1/8
0.137
0.125
0.44
1.12
1.32
14
14
379657
2B0204
1/8
1/4
0.137
0.137
0.44
1.14
1.35
17
19
379658
2B0206
1/8
3/8
0.137
0.271
0.44
1.26
1.51
22
22
379659
2B0402
1/4
1/8
0.185
0.125
0.45
1.1
1.264
19
14
379660
2B0404
1/4
1/4
0.185
0.172
0.45
1.16
1.364
19
19
379661
2B0406
1/4
3/8
0.185
0.185
0.45
1.242
1.51
19
22
379662
2B0408
1/4
1/2
0.185
0.185
0.45
1.368
1.657
22
27
379663
2B0412
1/4
3/4
0.25
0.609
0.45
1.35
1.74
30
32
379664
2B0602
3/8
1/8
0.312
0.125
0.52
1.17
1.36
22
14
379665
2B0604
3/8
1/4
0.312
0.172
0.52
1.25
1.464
22
19
379666
2B0606
3/8
3/8
0.312
0.271
0.52
1.352
1.62
22
22
379667
2B0608
3/8
1/2
0.312
0.312
0.52
1.363
1.65
22
27
379668
2B0610
3/8
5/8
0.312
0.464
0.52
1.395
1.8
27
30
379669
2B0612
3/8
3/4
0.312
0.312
0.52
1.395
1.8
30
32
379670
2B0616
3/8
1
0.312
0.797
0.52
1.483
1.9
1.5"
41
379671
2B0804
1/2
1/4
0.437
0.172
0.6
1.38
1.6
27
19
379672
2B0806
1/2
3/8
0.437
0.271
0.6
1.472
1.725
27
22
379673
2B0808
1/2
1/2
0.437
0.375
0.6
1.498
1.8
27
27
379674
2B0810
1/2
5/8
0.437
0.437
0.6
1.48
1.9
27
30
379675
2B0812
1/2
3/4
0.437
0.437
0.6
1.51
1.92
30
32
379676
2B0816
1/2
1
0.437
0.797
0.6
1.573
2
1.5"
41
379677
2B1004
5/8
1/4
0.5
0.172
0.7
1.475
1.724
1.1"
0.71"
379678
2B1006
5/8
3/8
0.593
0.296
0.7
1.622
1.862
30
22
379679
2B1008
5/8
1/2
0.562
0.375
0.7
1.688
1.98
30
27
379680
2B1010
5/8
5/8
0.5
0.5
0.7
1.565
1.98
30
30
379681
2B1012
5/8
3/4
0.562
0.562
0.7
1.61
2
30
32
379682
2B1204
3/4
1/4
0.687
0.172
0.75
1.57
1.782
32
19
379683
2B1206
3/4
3/8
0.659
0.271
0.75
1.672
1.93
32
22
379684
2B1208
3/4
1/2
0.659
0.375
0.75
1.688
1.99
32
27
379685
2B1210
3/4
5/8
0.659
0.464
0.75
1.68
2.06
32
30
379686
2B1212
3/4
3/4
0.659
0.6
0.75
1.68
2.04
32
32
379687
2B1216
3/4
1
0.659
0.659
0.75
1.728
2.17
1.5"
41
379688
2B1220
3/4
1 1/4
0.659
1.014
0.75
1.86
2.3
46
50
379689
2B1224
3/4
1 1/2
0.659
1.201
0.75
2.08
2.6
50
55
379690
2B1606
1
3/8
0.875
0.271
0.8
1.812
2.08
41
22
379691
2B1608
1
1/2
0.875
0.375
0.8
1.828
2.11
41
27
379692
2B1612
1
3/4
0.875
0.6
0.8
1.8
2.19
41
32
379693
2B1616
1
1
0.875
0.797
0.8
1.778
2.23
41
41
379694
2B1620
1
1 1/4
0.875
0.875
0.8
1.91
2.36
50
50
379695
2B1624
1
1 1/2
0.875
1.201
0.8
2.05
2.5
50
55
379696
2B1632
1
2
0.875
1.703
0.8
2.212
2.86
65
70
379697
2B2008
1 1/4
1/2
1.125
0.375
0.8
1.853
2.15
50
27
379698
2B2012
1 1/4
3/4
1.125
0.6
0.8
1.825
2.21
50
32
379699
2B2016
1 1/4
1
1.125
0.797
0.8
1.873
2.32
50
41
379700
2B2020
1 1/4
1 1/4
1.125
1.014
0.8
1.94
2.41
50
50
379701
2B2024
1 1/4
1 1/2
1.125
1.201
0.8
2.07
2.6
50
55
379702
2B2416
1 1/2
1
1.312
0.797
0.85
1.978
2.42
55
41
379703
2B2420
1 1/2
1 1/4
1.312
1.014
0.85
2.04
2.5
55
50
379704
2B2424
1 1/2
1 1/2
1.312
1.201
0.85
2.18
2.7
55
55
379705
2B2432
1 1/2
2
1.312
1.703
0.85
2.262
2.96
65
70
379706
2B3224
2
1 1/2
1.75
1.201
1
2.35
2.85
70
55
379707
2B3232
2
2
1.812
1.703
1
2.412
3.08
70
70
