Thread Ends: Fixed Female x Fixed Female (Reducing)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

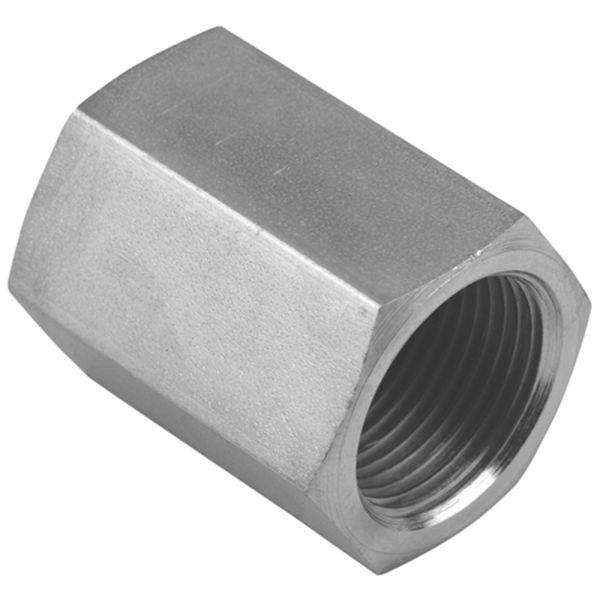

This reducing socket features BSPP fixed female threads on both ends, enabling the secure connection of different-sized BSPP male fittings. Manufactured from high-quality mild steel by Burnett & Hillman to BS EN 10277 standards, it offers a robust and leak-free solution for hydraulic and pneumatic systems requiring size adaptation.
Key Features & Benefits
Material Strength: Strong mild steel construction for high durability
Thread Configuration: BSPP fixed female x fixed female for reducing-size connections
Standard Compliance: Produced to BS EN 10277 for precise and reliable threading
Versatile Use: Ideal for hydraulic and pneumatic applications needing BSPP size reduction
Temperature Performance: Operates effectively between -40°C and +120°C
Leak-Free Sealing: Designed for pressure-tight and secure joints
Quality Manufacturing: Manufactured under ISO 9001-certified processes for consistent quality
Downloads
Burnett & Hillman Pressure Guide

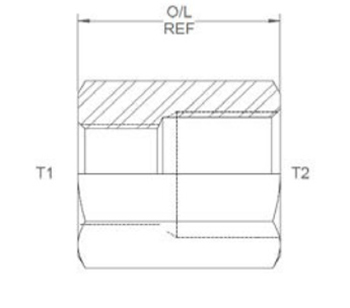

SKU
Product Code
T1 (")
T2 (")
O/L (")
A/F (mm)
379874
7B0204
1/8
1/4
25.4
19
379875
7B0406
1/4
3/8
28.58
22
379876
7B0408
1/4
1/2
32.51
27
379877
7B0608
3/8
1/2
32.39
27
379878
7B0812
1/2
3/4
43.18
32
379879
7B0810
1/2
5/8
38.61
30
379880
7B1216
3/4
1
50.8
41
