Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

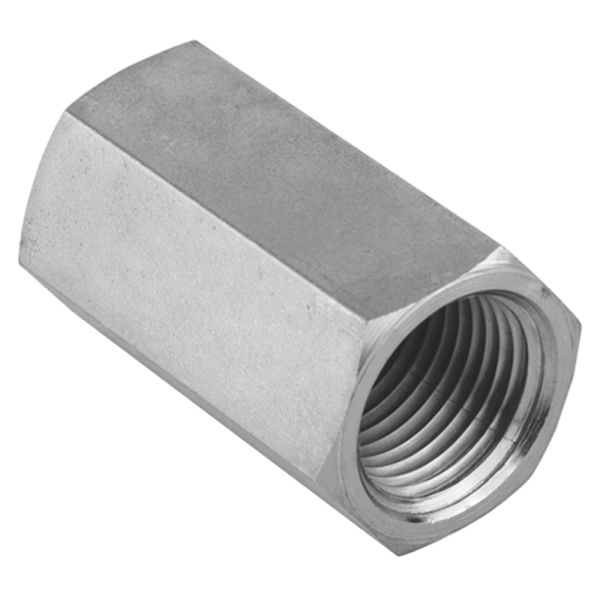

This fixed female socket features NPT threads and is manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards. Designed for secure and leak-free connections, it allows easy integration of NPT male fittings into hydraulic and pneumatic systems, providing strength and durability for high-pressure applications.
Key Features & Benefits
Material Strength: Robust mild steel construction ensures long-lasting use
Thread Configuration: NPT fixed female socket for direct connection to NPT male fittings
Standard Compliance: Produced to BS EN 10277 for precise and reliable threading
Versatile Application: Suitable for hydraulic and pneumatic systems requiring NPT connections
Temperature Performance: Operates effectively from -40°C to +120°C
Leak-Free Sealing: Designed for pressure-tight, secure joints
Quality Manufacturing: Manufactured under ISO 9001-certified processes for consistent quality
Downloads
Burnett & Hillman Pressure Guide

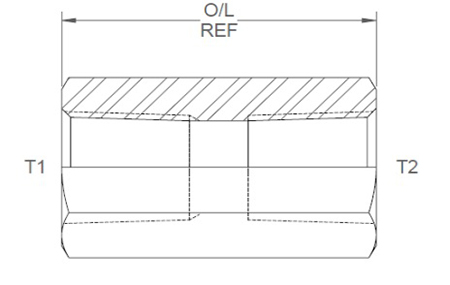

SKU
Product Code
T1 (")
T2 (")
O/L (")
A/F (mm)
379881
7N02
1/8
1/8
1.065
14
379882
7N04
1/4
1/4
1.35
19
379883
7N06
3/8
3/8
1.4
22
379884
7N08
1/2
1/2
1.8
27
379885
7N12
3/4
3/4
1.8
32
379886
7N16
1
1
2.2
41
379887
7N24
1 1/2
1 1/2
2.25
55
