Seal Type: 37° Cone on JIC male, 60° Internal Seat on JIS female
Thread Ends: JIC Male (37° Cone) x JIS Metric Female Fixed (Extended)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

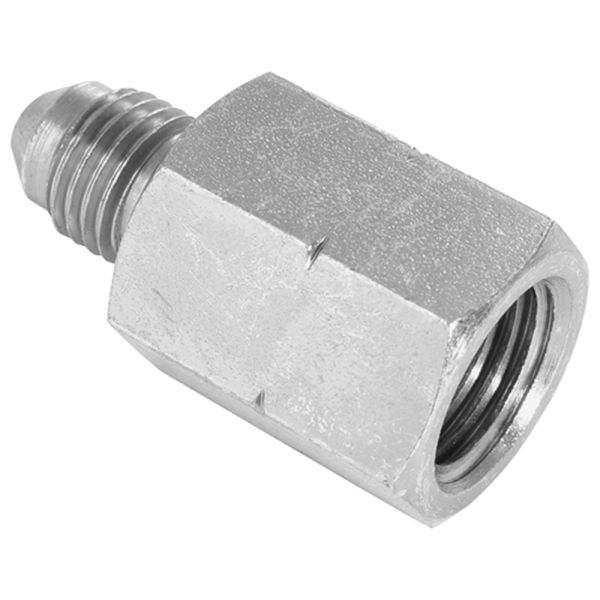

This adaptor features a JIC male thread with a 37° cone on one end and a fixed extended JIS Metric female thread with a 60° internal seat on the other. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a strong, leak-free connection for joining JIC and JIS Metric fittings. The extended female design offers improved reach and installation flexibility for hydraulic and pneumatic systems.
Key Features & Benefits
Material Strength: Robust mild steel construction for long-term reliability
Thread Configuration: JIC male 37° cone to extended JIS Metric female with 60° internal seat
Seal Type: 37° cone and 60° internal seat ensure secure, leak-free connections
Extended Female Design: Provides additional reach and easier installation options
Standard Compliance: Manufactured to BS EN 10277 for dimensional accuracy
Versatile Application: Ideal for hydraulic and pneumatic systems requiring JIC to JIS Metric conversion
Temperature Performance: Effective operation from -40°C to +120°C
Quality Manufacturing: Produced in ISO 9001-certified facilities for consistent quality assurance
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

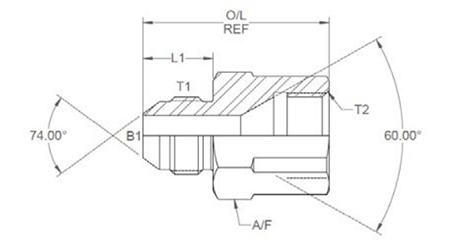

Male Thread T1 (")
Female Thread (mm)
B1 (")
L1 (")
O/L (")
A/F (mm)
380793
8701-04-14
7/16
M14 x 1.5
0.172
0.550
1.480
19
380794
8701-06-18
9/16
M18 x 1.5
0.297
0.556
1.510
22
380795
8701-08-22
3/4
M22 x 1.5
0.391
0.657
1.890
27
380796
8701-12-30
1 1/16
M30 x 1.5
0.609
0.864
2.000
1.5"
380797
8701-16-33
1 5/16
M33 x 1.5
0.844
0.911
2.060
41
