Thread Type: BSPP (British Standard Parallel Pipe)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

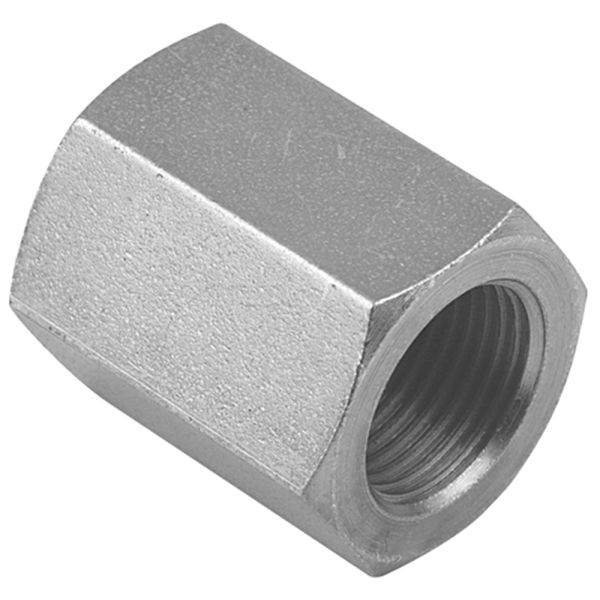

This fixed female socket features BSPP threads and is manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards. Designed for secure, leak-free connections in hydraulic and pneumatic systems, it provides a reliable solution for joining BSPP male fittings. The fixed design ensures stability and long-lasting performance in demanding applications.
Key Features & Benefits
Material Strength: Durable mild steel construction for long-term use
Thread Configuration: BSPP fixed female socket for straightforward system integration
Standard Compliance: Built to BS EN 10277 for dimensional accuracy and reliability
Versatile Application: Suitable for hydraulic and pneumatic systems using BSPP fittings
Temperature Performance: Operates effectively from -40°C to +120°C
Leak-Free Connection: Designed for secure, pressure-tight joints
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide

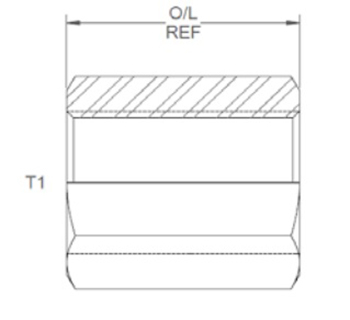

SKU
Product Code
T1 (")
O/L (")
A/F (mm)
379864
7B02
1/8
1
14
379865
7B04
1/4
1
19
379866
7B06
3/8
1.135
22
379867
7B08
1/2
1.29
27
379868
7B10
5/8
1.52
30
379869
7B12
3/4
1.695
32
379870
7B16
1
2
41
379871
7B20
1 1/4
2.1
50
379872
7B24
1 1/2
2.1
55
379873
7B32
2
2.765
70
