Thread Ends: BSPP Male (60° Cone) x NPT Female (Extended)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description
This adaptor features a BSPP male thread with a 60° cone seal and an extended NPT female thread, allowing seamless connections between BSPP and NPT fittings. Manufactured from high-quality mild steel by Burnett & Hillman to BS EN 10277 standards, it provides a durable, leak-free solution for hydraulic and pneumatic systems requiring mixed-thread compatibility with extended reach.
Key Features & Benefits
Material Strength: Strong mild steel construction for durability and long-lasting use
Thread Configuration: BSPP male 60° cone to extended NPT female for mixed-thread adaptability
Seal Type: 60° cone provides robust, leak-free metal-to-metal sealing
Extended Female Design: Offers additional reach and installation flexibility
Standard Compliance: Produced to BS EN 10277 for precise threading and reliability
Versatile Application: Suitable for hydraulic and pneumatic systems requiring BSPP to NPT connections
Temperature Performance: Operates reliably from -40°C to +120°C
Quality Manufacturing: ISO 9001-certified processes ensure consistent product quality
Downloads
Burnett & Hillman Pressure Guide

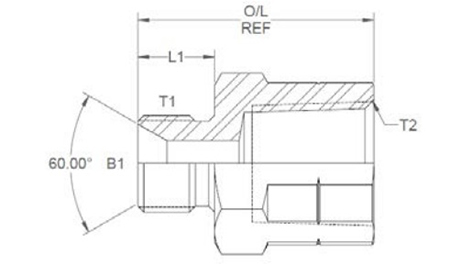

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F (mm)
379441
16060
1/8
1/8
0.137
0.44
1.07
14
379442
16061
1/4
1/8
0.185
0.45
1.26
19
379443
16062
1/4
1/4
0.185
0.45
1.26
19
379444
16073
1/4
3/8
0.185
0.45
1.36
22
379445
16085
1/4
1/2
0.185
0.45
1.53
27
379446
16072
3/8
1/4
0.312
0.52
1.43
22
379447
16063
3/8
3/8
0.312
0.52
1.43
22
379448
16065
1/2
3/8
0.5
0.6
1.68
27
379449
16066
1/2
1/2
0.437
0.6
1.68
27
379450
16082
1/2
3/4
0.437
0.6
1.95
32
379451
16067
3/4
3/4
0.659
0.75
2.1
32
379452
16083
1
3/4
0.875
0.8
2.16
41
379453
16068
1
1
0.875
0.8
2.3
41
379454
16084
1
1 1/2
0.875
0.8
2.4
55
379455
16069
1 1/4
1 1/4
1.125
0.8
2.5
50
379456
16075
1 1/2
1 1/4
1.312
0.85
2.42
55
379457
16070
1 1/2
1 1/2
1.312
0.85
2.42
55
379458
16071
2
2
1.812
1
2.74
70
