Thread Type: BSPP (British Standard Parallel) Male x Metric Female (1.5mm pitch)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description
This adaptor features a BSPP male thread with a 60° cone seal and an extended Metric female thread with a 1.5mm pitch. Manufactured from high-quality mild steel by Burnett & Hillman to BS EN 10277 standards, it provides a durable, leak-free solution for connecting BSPP male fittings to Metric female components in hydraulic and pneumatic systems.
Key Features & Benefits
Material Strength: Robust mild steel construction ensures reliable performance
Thread Configuration: BSPP male 60° cone to extended Metric female (1.5mm pitch) for mixed-thread connections
Seal Type: 60° cone ensures secure, leak-free metal-to-metal sealing
Standard Compliance: Produced to BS EN 10277 for precise, high-quality threading
Extended Female Design: Provides additional reach and flexibility during installation
Versatile Application: Suitable for hydraulic and pneumatic systems requiring BSPP to Metric connections
Temperature Performance: Operates effectively from -40°C to +120°C
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

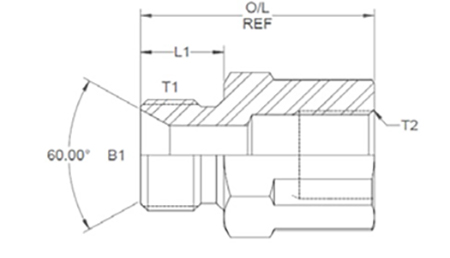

Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F (mm)
379436
19803
1/4
M12 x 1.5
0.185
0.45
1.275
19
379437
19804
1/4
M14 x 1.5
0.185
0.45
1.275
19
379438
19800
1/2
M16 x 1.5
0.437
0.6
1.7
27
379439
19801
1/2
M22 x 1.5
0.437
0.6
1.7
27
379440
19802
3/4
M22 x 1.5
0.659
0.75
1.8
32
