Thread Ends: BSPP Male (60° Cone) x BSPP Fixed Female Gauge
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

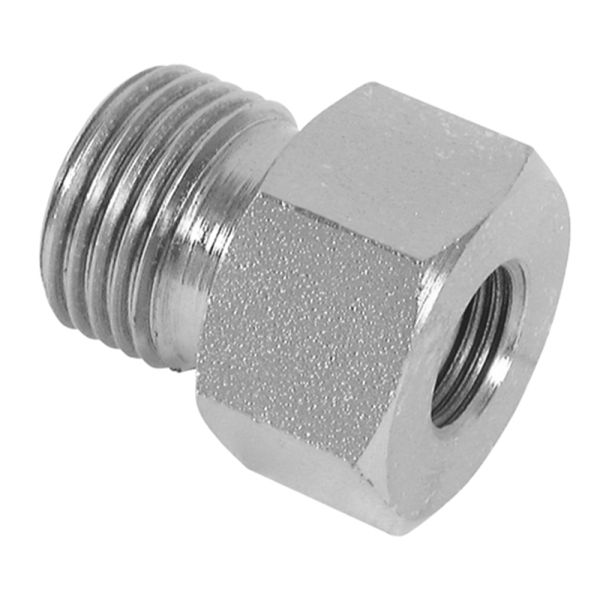

This adaptor features a BSPP male 60° cone connection on one end and a BSPP fixed female gauge port on the other. Manufactured by Burnett & Hillman from mild steel to BS EN 10277 standards, it provides a reliable, leak-free solution for connecting pressure gauges and other hydraulic components in high-pressure systems.
Key Features & Benefits
Material Strength: Durable mild steel construction for extended service life
Thread Configuration: BSPP male 60° cone to BSPP fixed female gauge for easy gauge installation
Seal Type: 60° cone ensures robust, leak-free metal-to-metal sealing
Standard Compliance: Produced to BS EN 10277 for precise, high-quality threading
Versatile Application: Ideal for hydraulic systems requiring gauge connections
Temperature Performance: Operates effectively from -40°C to +120°C
Quality Manufacturing: Manufactured under ISO 9001-certified processes for consistent reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

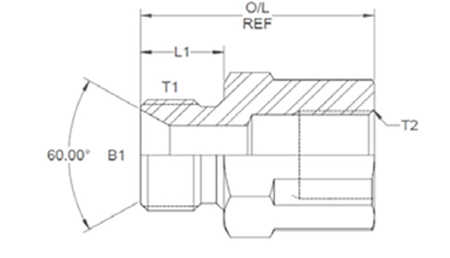

Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F
379599
4BG02
1/8
1/8
0.187
0.44
1.04
0.6"
379600
4BG0204
1/8
1/4
0.137
0.44
1.04
19mm
379601
4BG0206
1/8
3/8
0.187
0.44
1.06
0.92"
379602
4BG0402
1/4
1/8
0.185
0.45
1.05
19mm
379603
4BG04
1/4
1/4
0.185
0.45
1.05
19mm
379604
4BG0406
1/4
3/8
0.185
0.45
1.07
22mm
379605
4BG0408
1/4
1/2
0.185
0.45
1.275
27mm
379606
4BG0602
3/8
1/8
0.312
0.52
1.12
22mm
379607
4BG0604
3/8
1/4
0.312
0.52
1.12
22mm
379608
4BG06
3/8
3/8
0.312
0.52
1.14
22mm
379609
4BG0608
3/8
1/2
0.312
0.52
1.345
27mm
379610
4BG0804
1/2
1/4
0.437
0.6
1.2
27mm
379611
4BG0806
1/2
3/8
0.437
0.6
1.26
27mm
379612
4BG08
1/2
1/2
0.5
0.6
1.36
27mm
379613
4BG0812
1/2
3/4
0.437
0.6
1.6
32mm
379614
4BG0816
1/2
1
0.5
0.6
1.65
1.67"
379615
4BG1208
3/4
1/2
0.659
0.75
1.575
32mm
379616
4BG1612
1
3/4
0.875
0.8
1.8
41mm
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
