Thread Ends: BSPP Male (60° Cone) x BSPP Fixed Female (Extended)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Description

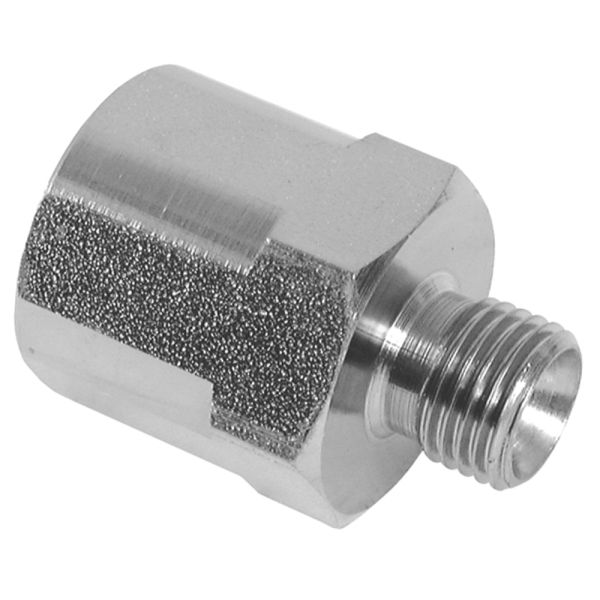

This adaptor features a BSPP male thread with a 60° cone seal on one end and a BSPP fixed female extended connection on the other. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it is designed for secure, leak-free connections in hydraulic and pneumatic systems requiring an extended female fitting.
Key Features & Benefits
Material Strength: High-quality mild steel ensures durability and strength
Thread Configuration: BSPP male 60° cone to BSPP fixed female extended for versatile use
Seal Type: 60° cone provides reliable, leak-free metal-to-metal sealing
Extended Female Design: Offers additional reach and connection flexibility
Standard Compliance: Manufactured to BS EN 10277 for dimensional precision
Temperature Performance: Operates reliably between -40°C and +120°C
Quality Manufacturing: ISO 9001-certified processes guarantee consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

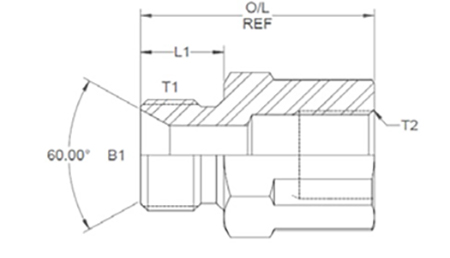

Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F (mm)
379395
4BX02
1/8
1/8
0.137
0.44
1.07
14
379396
4BX0204
1/8
1/4
0.137
0.44
1.26
19
379397
4BX0206
1/8
3/8
0.137
0.44
1.35
22
379398
4BX0208
1/8
1/2
0.137
0.44
1.47
27
379399
4BX0402
1/4
1/8
0.185
0.45
1.26
19
379400
4BX04
1/4
1/4
0.185
0.45
1.26
19
379401
4BX0406
1/4
3/8
0.185
0.45
1.36
22
379402
4BX0408
1/4
1/2
0.185
0.45
1.48
27
379403
4BX0412
1/4
3/4
0.25
0.45
1.75
32
379404
4BX0604
3/8
1/4
0.312
0.52
1.43
22
379405
4BX06
3/8
3/8
0.312
0.52
1.43
22
379406
4BX0608
3/8
1/2
0.312
0.52
1.58
27
379407
4BX0612
3/8
3/4
0.312
0.52
1.82
32
379408
4BX0806
1/2
3/8
0.437
0.6
1.68
27
379409
4BX08
1/2
1/2
0.437
0.6
1.68
27
379410
4BX0812
1/2
3/4
0.437
0.6
1.9
32
379411
4BX0816
1/2
1
0.437
0.6
2.05
41
379412
4BX0820
1/2
1 1/4
0.437
0.6
2.22
50
379413
4BX1208
3/4
1/2
0.659
0.75
2
32
379414
4BX12
3/4
3/4
0.659
0.75
2
32
379415
4BX1216
3/4
1
0.659
0.75
2.2
41
379416
4BX1224
3/4
1 1/2
0.659
0.75
2.37
55
379417
4BX1612
1
3/4
0.875
0.8
2.25
41
379418
4BX16
1
1
0.875
0.8
2.25
41
379419
4BX1620
1
1 1/4
0.875
0.8
2.42
50
379420
4BX1624
1
1 1/2
0.875
0.8
2.42
55
379421
4BX2020
1 1/4
1 1/4
1.125
0.8
2.42
50
379422
4BX2024
1 1/4
1 1/2
1.125
0.8
2.42
55
379423
4BX2032
1 1/4
2
1.125
0.8
2.54
70
379424
4BX2420
1 1/2
1 1/4
1.312
0.85
2.47
55
379425
4BX24
1 1/2
1 1/2
1.312
0.85
2.47
55
